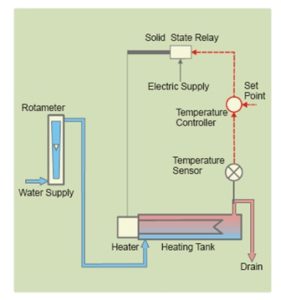

Temperature control trainer is designed for understanding the basic temperature control principles. The process setup consists of heating tank fitted with SSR controlled heater for on-line heating of the water. The flow of water can be manipulated and measured by rotameter. Temperature sensor

(RTD)  is used  for  temperature  sensing.  The  process parameter (Temperature) is controlled by microprocessor based digital indicating controller which manipulates heat input to the process. These units along with necessary piping and

fitting are mounted on support frame designed for tabletop mounting. The controller can be connected to computer through ethernet port for monitoring the process in SCADA mode.

FEATURES

• ON-Off & PID operation
• Auto tuning
• SCADA study
• MODBUS communication
• Open/closed loop tuning
• Simulation mode
• Stability analysis

RANGE OF EXPERIMENTS

• Study of open loop (Manual control)
• Study of on/off controller
• Study of proportional controller
• Study of prop. integral controller
• Study of prop. derivative controller
• Study of PID controller
• Tuning of controller (Open loop method)
• Tuning of controller (Closed loop method)
• Tuning of controller (Using Auto Tuning )
• Study of stability of the system (Bode plot)

UTILITIES REQUIRED

• Electric supply: 230 +/- 10 VAC, 50 Hz, 1 phase
• Water supply: Continuous, clean and soft water Supply @100 LPH
• Computer: With standard configuration
• Support table: Size: 800Wx800Dx750H in mm

SOFTWARE

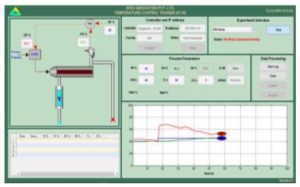

Specially developed SCADA Software is provided which helps in learning the principles of control. Different experiments can easily be selected and studied. The software is easy to use, flexible & scalable with features like Data access, trend plots, Data logging, Printing, Data export.
