Description

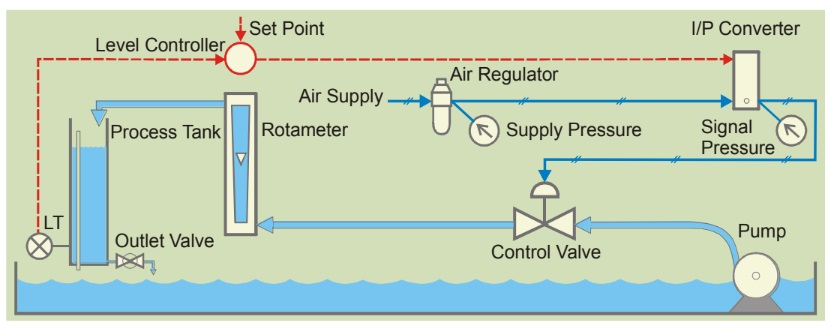

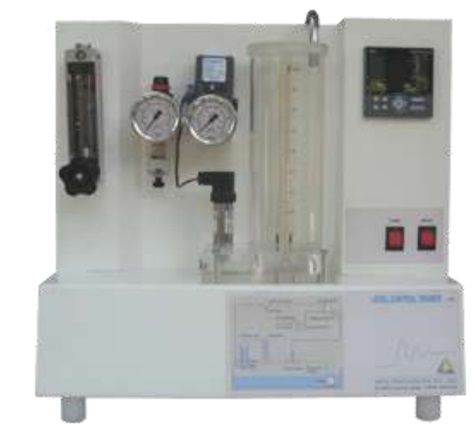

Level control trainer is designed for understanding the basic principles of level control. The process setup consists of supply water tank fitted with pump for water circulation. The level transmitter used for level sensing is fitted on transparent process tank. The process parameter (level) is controlled by microprocessor based digital indicating controller which manipulates pneumatic control valve through I/P converter. A pneumatic

control valve adjusts the water flow in to the tank. These units along with necessary piping are fitted on support housing designed for tabletop mounting.The controller can be connected to computer through ethernet port for monitoring the process in SCADA mode.

FEATURES

• ON-Off & PID operation
• Auto tuning
• SCADA study
• MODBUS communication
• Open/closed loop tuning
• Simulation mode
• Stability analysis

RANGE OF EXPERIMENTS

• Study of open loop (Manual control)
• Study of on/off controller
• Study of proportional controller
• Study of prop. integral controller
• Study of prop. derivative controller
• Study of PID controller
• Tuning of controller (Open loop method)
• Tuning of controller (Closed loop method)
• Tuning of controller (Using Auto Tuning )
• Study of stability of the system (Bode plot)

UTILITIES REQUIRED

• Electric supply: 230 +/- 10 VAC, 50 Hz, 1 phase
• Water supply: Distilled water @10 liters
• Computer: With standard configuration
• Air Supply: Clean, oil and moisture free air, Pressure 2 Bar, consumption 50 LPH
• Support table: Size: 800Wx800Dx750H in mm

SOFTWARE

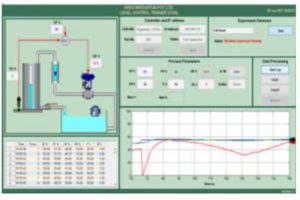

Specially  Developed SCADA software is provided which helps  in  learning  the  principles  of  control.  Different experiments can easily be selected and studied. The software is easy to use, flexible & scalable with features like Data access, trend plots, Data logging, Printing, Data export
