IMI 106 CASCADE CONTROL TRAINER

DESCRIPTION

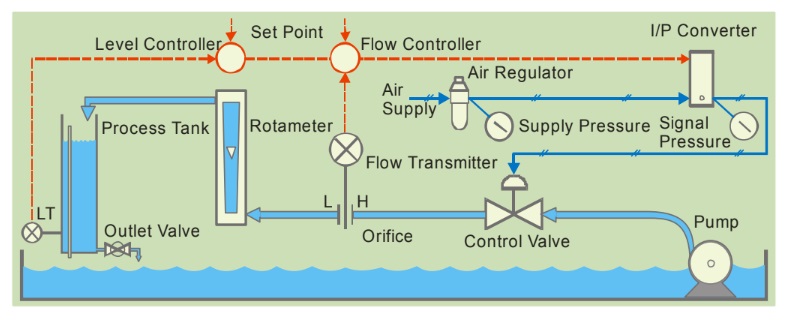

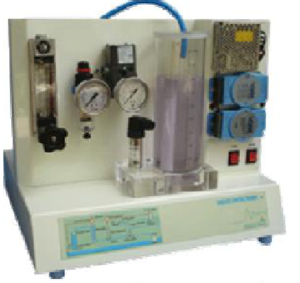

The setup is designed to understand the advanced control methods used for complex processes in the industries. Different experiments like Flow, level and cascade control can be configured and studied with the setup. It consists of water supply tank, pump, level transmitter, transparent level tank, orifice meters with differential pressure transmitters, rota meters, pneumatic control valve, I/P converter and data acquisition device. These units along with necessary piping are mounted on support housing designed for tabletop mounting. The process signals from level transmitter and flow transmitter are connected to Multifunction I/O & NI-DAQMX which is connected to computer through USB port communication.

FEATURES



  • Flow, Level and Cascade control
  • ON-Off & PID operation
  • Closed loop water circulation
  • Non-corrosive wetted parts



RANGE OF EXPERIMENTS



  • Study of open loop response (Manual control)
  • Study of on/off controller
  • Study of proportional controller
  • Study of proportional integral controller
  • Study of proportional derivative controller
  • Study of proportional integral derivative Controller
  • Tuning of controller (Open loop method)
  • Tuning of controller (Closed loop method)
  • To study stability of the system (Bode plot)
  • To study cascade control system



UTILITIES REQUIRED



  • Electric supply230 +/- 10 VAC, 50 Hz, 1 phase.
  • Water supplyDistilled water @13 liters
  • Air supply Clean, oil and moisture free air, pressure 2 Bar, consumption 50 LPH
  • Computer Standard configuration
  • Support tableSize: 800Wx800Dx750H in mm

SOFTWARE

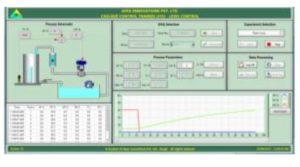

Specially developed Lab View based software is provided which helps in learning the principles of control. Different experiments can easily be selected and studied. The software is easy to use, flexible & with features like Data access, trend plots, Data logging, Printing, Data export.

TECHNICAL SPECIFICATIONS

Product & Code Cascade control trainer & IMI 106
DAQ device NI USB -6001, 14 bit, 20 KS/S Multifunction I/O and NI-DAQMX. Analog input 4, Analog output 2
Communication DP USB port
transmitter Level Type Capacitance, two wire, Range 0–200 mm,Output 4–20 mA sq.root
transmitter I/P Type Electronic, two wire, Range 0–250 mm, Output 4–20mA
converter Power Input 4-20mA, Output 3-15 psig
supply Control Model S-15-24, Output 24 VDC, 0.7 A
valve Type Pneumatic; Size: 1/4", Input: 3–15 psig, Air to close, Characteristics: linear
Rotameter 10-100 LPH
Pump Fractional horse power, type submersible
Process tank Transparent, Acrylic, with 0-100% graduated scale
Flow measurement Orifice meter
Air filter regulator Range 0-2.5 kg/cm2
Pressure gauge Range 0-2.5 kg/cm2(1No), Range 0-7 kg/cm2(1No)
Overall dimensions 550Wx475Dx520H mm
