IMI 108 FLOW MEASUREMENT

DESCRIPTION



The set up is designed to study following different type of units used for flow measurement.

  • Venturimeter
  • Orifice meter
  • Pitot tube
  • Rotameter
  • Water meter

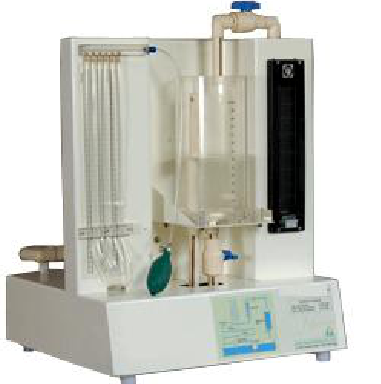

Setup consists of flow measurement units under study, supply tank, Submersible pump for closed loop water circulation, acrylic measuring tank with graduated scale and differential pressure measuring arrangement mounted on standalone structure.



FEATURES

  • Closed loop water circulation
  • Acrylic Venturimeter, orifice meter, Pitot tube

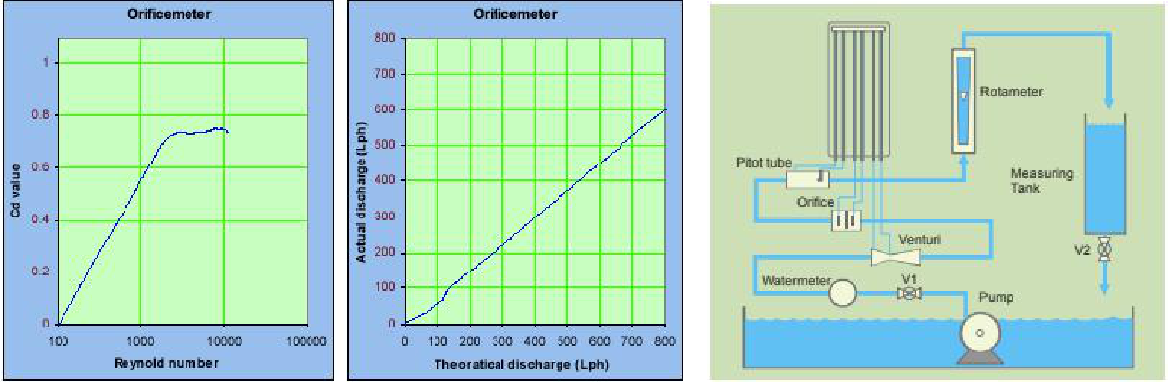

  • MS Excel sample calculation
  • Compact and simple to operate



RANGE OF EXPERIMENTS

  • To calculate coefficient of discharge of Venturimeter
  • To calculate coefficient of discharge of orifice meter
  • To calculate coefficient of discharge of Pitot tube
  • To calibrate and find accuracy of Rotameter
  • To find accuracy of water meter



UTILITIES REQUIRED



Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase

Water supply Distilled water @ 10 liters



TECHNICAL SPECIFICATIONS

Product & Code Flow Measurement & IMI 108
Venturimeter Size 18.5 mm, Bore 10 mm, Acrylic
Orificemeter Size 18.5 mm, Bore 12 mm, Acrylic
Pitot tube Size 18.5 mm, Acrylic
Rotameter Range 60–600 LPH
Water meter Size ½”BSP, brass, Least count 1 lit.
Supply tank SS 304
Measuring Tank Capacity 3 lit, Acrylic
Pressure difference Tube with graduated scale
Pump Fractional Horse Power, Type Submersible
Piping ¾“ BSP, CPVC
Overall Dimensions 550Wx475Dx750H mm
