The set up is designed to study of transient response of first-order and second-order systems.

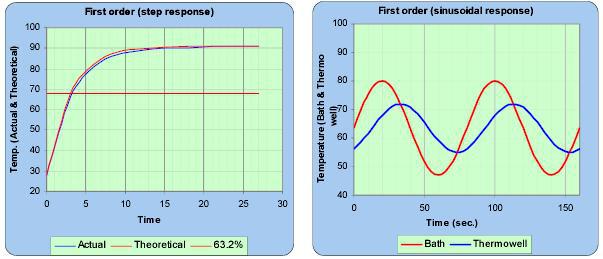

First-order system:

• Step response of thermometer
• Step response of thermo well
• Sinusoidal response of thermo well

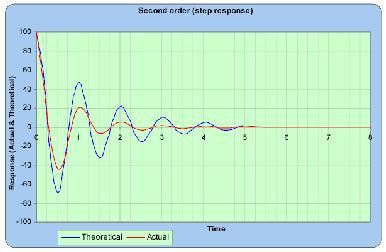

Second-order system:

• Step response of mercury manometer
• Step response of manometer

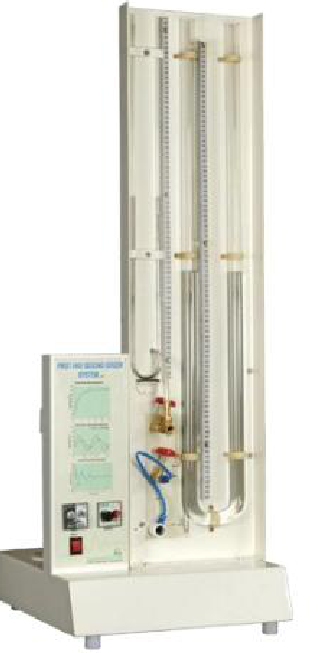

Setup consists of ‘U’ tube manometer, heating bath, thermometer, thermo well, beeper for recording observations and timer for heater on-off operation. The components are mounted on base plate. The set up is tabletop mountable.

FEATURES

• Sinusoidal water bath
• Beeper for recording observations
• MS Excel sample calculation
• Compact and simple to operate

RANGE OF EXPERIMENTS

• Study of step response of thermometer
• Study of step response of thermo well
• Study of sinusoidal response of thermo well
• Study of step response of mercury manometer
• Study of step response of water manometer

UTILITIES REQUIRED

• Electric supply: Provide 230 +/- 10 VAC, 50 Hz, single phase

• Water supply: Continuous clean and soft water supply @100LPH

• Support table: Size: 800Wx800Dx750H in mm
