IMI 112 TEMPERATURE MEASUREMENT

DESCRIPTION



The setup is designed to study

  • Different types of temperature sensors for characteristics and time constants.
  • Seebeck effect
  • Temperature indicator and its calibration
  • Temperature transmitter and its calibration
  • Compensating cable, thermocouple connector



It consists of:

  • Temperature indicator, temperature sensors such as mercury in glass thermometer, bimetal dial thermometer, RTD, thermistor and thermocouple.
  • Two wire temperature transmitter with power supply
  • Thermocouple connector and compensating cable
  • Bare elements of RTD, Thermistor, Thermocouple
  • Hot water bath, Ice bath, Multimeter and 4.1/2 Digit milivoltmeter



FEATURES

  • Inbuilt digital multimeter
  • 4.1/2 digit milivoltmeter
  • MS Excel sample calculation
  • Beeper for recording observations



RANGE OF EXPERIMENTS



  • Study of Different types of Temperature sensors

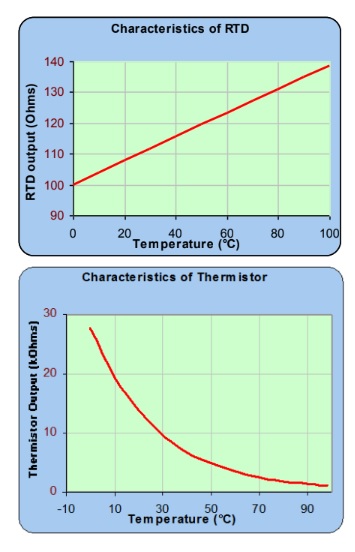

  • Characteristics of RTD (PT-100)
  • Characteristics of Thermistor
  • Characteristics of Thermocouple
  • Study & calibration of temperature indicator
  • Study & calibration of temperature transmitter
  • Study of See beck effect
  • Time constant of mercury in glass thermometer
  • Time constant of bimetal thermometer
  • Time constant of RTD (Pt100) sensor
  • Time constant of Thermistor sensor
  • Time constant of Thermocouple sensor



Utilities Required

Electric supply
230 +/- 10 VAC, 50 Hz, 1 phase

Support table
Size 800Wx800Dx750H in mm



TECHNICAL SPECIFICATIONS

Product & Code TEMPERATURE MEASUREMENT & IMI 112
Thermometer Type Mercury in glass, Range (–)10 – 110 ° C
Bimetal thermometer Dial 100 mm, Range 0-100 Deg C
Temperature sensors Type PT 100, Sheath dia 6 x 100 mm long
Thermistor Type NTC, Sheath dia 6 mm x 100 mm long
Temperature sensor Type K, Sheath dia 6 mm x 100 mm long with Aluminium head.
Temperature Indicator Range 100 Deg C, Input thermocouple (K type)
Temperature Transmitter Type Head mounted two wire, Input RTD PT100, Range 0–100 Deg C, Output 4–20 mA
Digital milivoltmeter Range 0-200mVDC, Display 4.1/2 digit
Multimeter Display 3.1/2 digit,
Compensating cable Type K
Thermocouple connector Type K
Hot water bath Capacity 0.5 lit, 500W, non corrosive
Ice bath Capacity 0.300 lit.
Power supply Output 24V DC
Beeper Time setting Range 2-10sec
Overall Dimensions W 550 x D 320 x H 450 mm

The whole setup is well designed and arranged in a good quality painted structure.
