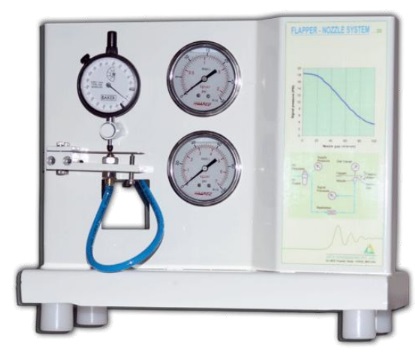

IMI 113 FLAPPER - NOZZLE SYSTEM

DESCRIPTION

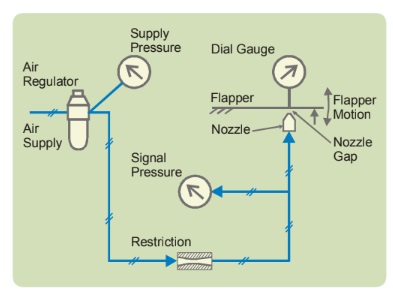

The set up helps in understanding conversion of mechanical motion to pressure signal. It consists of flapper – nozzle mechanism, Dial gauge indicator, pressure gauges and air filter regulator. A regulated supply of pressure, usually over 20 psig, provides a source of air through the restriction. The nozzle is open at the end where the gap exists between the nozzle and flapper, and air escapes in this region.



FEATURES



  • Simple and compact to operate
  • Micron dial gauge for flapper movement



RANGE OF EXPERIMENTS



  • Study of Flapper-Nozzle system
  • Gain calculation of Flapper-Nozzle system



UTILITIES REQUIRED

Air supply Clean, oil and moisture free air, pressure 2 Bar, consumption 50 LPH

Support table Size: 800Wx800Dx750H in mm



TECHNICAL SPECIFICATIONS

Product & Code FLAPPER - NOZZLE SYSTEM & IMI 113
Dial gauge indicator Least count 1 µm.
Pressure gauges Range 0-2.5 kg/cm2 (2 Nos).
Air filter regulator Range 0-2.5 kg/cm2

The whole setup is well designed and arranged in a good quality painted structure.
