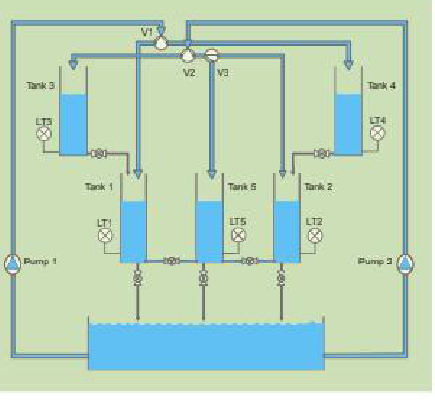

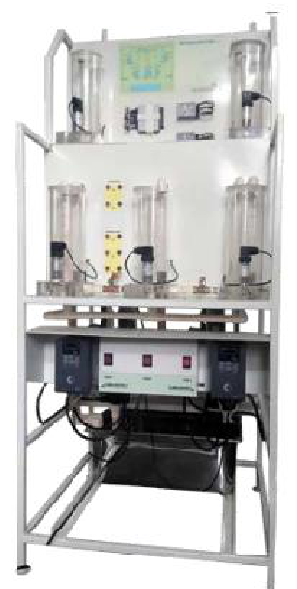

Multivariable control trainer is designed for teaching the basic level control principles and advanced study in complex systems for control engineering. It is a combination of four tank systems, usually also known as Quadruple Tank system. The setup consists of supply water tank with two variable speeds positive displacement pumps for water circulation, five transparent process tanks fitted with level transmitters, rotameters and flow dampers. The process signals from level transmitters are connected to Multifunction I/O & NI-DAQMX which is connected to computer through USB port communication. The process parameters are controlled through software and the output is fed to variable frequency drives used for the pumps. These units along with necessary piping are fitted on standalone support structure.

FEATURES

• Computerised operation
• Closed loop water circulation
• Compact, self contained
• Non-corrosive wetted parts

RANGE OF EXPERIMENTS

• Study of level control

Open loop, On-Off, P, PI, PD, PID Tuning by open & closed loop Stability analysis

• Study of second order interacting
• Study of second order non interacting
• Study of cascade control
• Study of three tank blend control
• Study of three tank MIMO control
• Study of quadruple tank control

UTILITIES REQUIRED

• Electric supply 230 +/- 10 VAC, 50 Hz, 1 phase
• Computer Standard Configuration
• Support table Size: 800Wx800Dx750H in mm for computer
• Water supply Distilled water @20 liters

Specially developed Lab view based software is provided which helps in learning the principles of control. Different experiments can easily be selected and studied. The software is easy to use, flexible with features like Data access, trend plots, Data logging, Printing, Data export.
