The set up is designed to study dynamic response of single and multi capacity processes when connected in interacting and non-interacting  mode. It is combined to study

• Single capacity process,
• Non-interacting process and
• Interacting process.

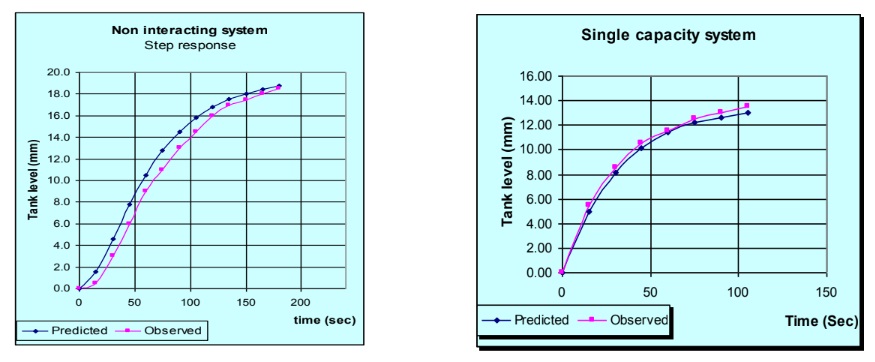

The observed step response of the tank level in different mode can be compared with mathematically predicted response.

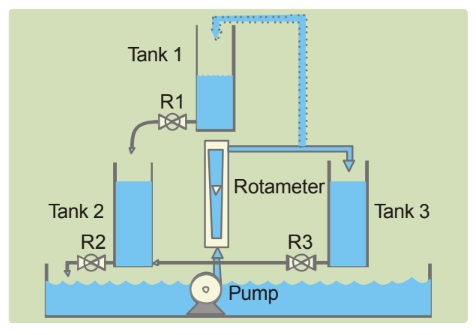

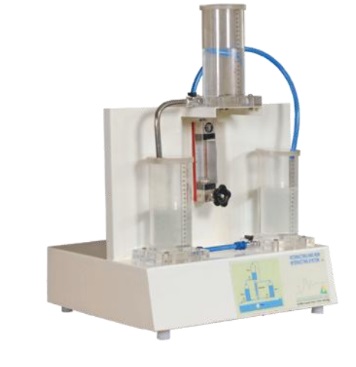

Setup consists  of supply   tank, pump  for  water circulation, rotameter for flow measurement, transparent tanks with graduated scales, which can be connected, in interacting and non-interacting mode. The components are assembled on frame to form tabletop mounting.

FEATURES

• Closed loop water circulation
• Compact, self contained
• Non corrosive wetted parts
• MS Excel sample calculation

RANGE OF EXPERIMENTS

• Step response of single capacity system.
• Step response of first order systems arranged in non-interacting mode.
• Impulse response of first order systems arranged in non-interacting mode
• Step response of first order systems arranged in interacting mode.
• Impulse response of first order systems arranged in interacting mode

UTILITIES REQUIRED

• Electric supply Provide 230 +/- 10 VAC, 50 Hz, single phase
• Water supply Distilled water @10 liters
