MS 01

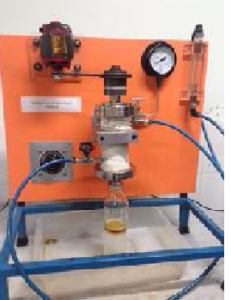

BENCH TOP STIRRED ULTRA FILTRATION MODULE
A bench top stirred ultra filtration module constructed with stainless steel (SS-304) would be mounted on a small structure.
Pressure can be given in the system by means of cylinder.
Permeate would be collected from the bottom of the cell.
The module would be provided with the followings
| Product & Code |
BENCH TOP STIRRED ULTRA FILTRATION MODULE & MS 01 |
| Material of construction |
Stainless steel (SS-304) |
| Volume of the cell |
500 cc. |
| Membrane support |
Plate type with fine mesh (02 numbers) |
| Membrane holder |
75 mm diameter |
| Maximum operating pressure |
30 atmosphere |
| Pressure gauge |
40 kg |
| Stirrer |
0-1000 RPM with speed controller |
