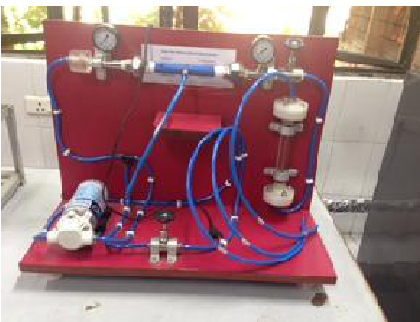

MS 04 HOLLOW FIBER MEMBRANE SETUP

DESCRIPTION



Membrane Type: Hydrophilic polymeric



Module Size: Fiber  inner  diameter  0.7mm,  fibre  outer  diameter



1.4mm, length of the fiber 16cm, total surface area not less than. 280 cm2

FEATURES/SPECIFICATIONS

  • Hydrophillic membrane
  • Hollow fiber Inner Diameter: 0.7 mm
  • Hollow fiber Outer Diameter: 1.4 mm
  • Length of each fiber: 16 cm
  • Total surface area: 280 cm2
  • Maximum transmembrane pressure drop: 30 psi
  • Maximum flow rate: 100 LPH
  • Pressure gauge (0-50 psi): 2 nos.
  • Rotameter- One: 50 LPH
  • Operating temperature- 500 C
  • Operating pH range- 1 to 13
  • Operating mode- cross flow
  • Construction of wet parts- corrosion resistant polymer

TECHNICAL DETAIL



Product & Code HOLLOW FIBER MEMBRANE SETUP & MS 04
Pressure Drop 50 psi (max)
Flow rate 50 LPH (max)
Pressure gauge (02): (up to 50 psi)
Rotameter one (up to 50 LPH)
Membrane Cartridge Two each for UF (20 and 70 kDa), MF ( 20 and 50 microns) and NF (700 and 200 Da MWCO)
