DESCRIPTION

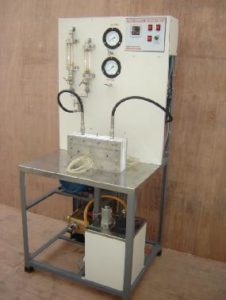

Design, Supply, Installation & Commissioning of high pressure cross flow membrane test cell along with pump, motor tank and accessories as detailed below.
- Cross flow Cell
Active Membrane Area: 42 cm2 (6.5 in2)
Active area Dimensions: 9.207 cm x 4.572 cm (3.625” x 1.800”)
Support Membrane: 20 µm sintered stainless steel
Maximum Pressure: 69 bar (1000 psig)
Maximum Temperature: 80°C (180°F)
Connections:
Feed: ¼” FNPT (base of cell)
Concentrate: 1/4” FNPT (base of cell)
Filtrate: 1/8” FNPT
Cell Body: Acetal
O-ring: Buna-N
Slot depth: 0.23 cm (0.09”)
- High Pressure Pump (Feed Pump) with 2 HP motor Capacity: 9 LPM
220V/3phase for variable speed
Pump head: Stainless Steel
Max Pressure: 1000 psi (69 bar),
Inlet port: ½ inch NPT
Discharge port: 3/8 inch NPT
Diaphragm: Viton/EPDM
- VARIABLE FREQUENCY Drive with choke protection in SS box (for 2 HP motor)
- Suction Pipe
Plastic Braided Hose pipe
Maximum Pressure: 2 bar
Size: ½ inch
- Discharge Pipe
Stainless Steel Braided Hose pipe PTFE Coated
Maximum Pressure: 1000 psig (69 bar)
Size: 3/8 inch
- Flow Control Valve Gunmetal Head SS Body Spring Pressure anti-vibration valve size ½ inch 0-60 bar
- SS Pressure Gauges with TEE Connection to cell body Pressure Rating: 0 to 100 bar
- Pressure Relief Valve at 69 bar SS 316 with
- TEE Connection for fitting with cell body
- SS Tank with jacket
Capacity: 3 liter
MOC: SS316
Feature: Jacket SS tank for
Cooling / Heating
