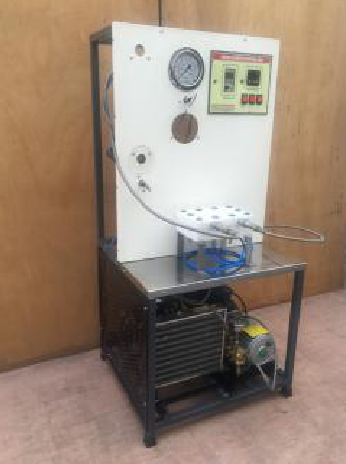

MS 08 HIGH PRESSURE CROSS FLOW DUCT MEMBRANE (SINGLE PERMEATE)

TECHNICAL SPECIFICATION



Product & Code High Pressure Cross Flow Membrane Test Cell & MS 08
Crossflow Cell Active Membrane Area: 42 cm2 (6.5 in2)

Active area Dimensions: 9.207 cm x 4.572 cm (3.625” x 1.800”)

Slot depth: 0.23 cm (0.09”)
Membrane Support 20 µm sintered stainless steel Sheet
Maximum Pressure 69 bar (1000 psig)
Maximum Temperature 80°C (180°F)
Connections



 Feed: ¼” FNPT (base of cell)

Concentrate: 1/4” FNPT (base of cell)

Filtrate: 1/8” FNPT
MOC Cell Body: Acetal

O-ring: Buna-N
High Pressure Pump / Feed Pump Motor 2 HP, 220V with frequency drive for variable speed and over load Protection
Capacity 9 LPM
MOC Pump head:  Stainless Steel , Diaphragm: Viton/EPDM
Max Pressure 1000 psi (69 bar),
Inlet port ½ inch NPT
Discharge port 3/8 inch NPT
Feed Tank SS Tank with jacket , Capacity: 3 liter , MOC: SS 304/ 316, fitted with 500W Heater
Accessory Suction Pipe : Plastic Braided Hose pipe, Maximum Pressure: 2 bar, Size: ½ inch

Discharge Pipe : Stainless Steel Braided Hose pipe PTFE Coated, Maximum Pressure: 1000 psig (69 bar), Size: 3/8 inch

Flow Control Valve Gunmetal Head SS Body, Spring Pressure anti-vibration valve size ½ inch, 0-60 bar

SS Pressure Gauges with TEE Connection to cell body, Pressure Rating: 0 to 100 bar

Pressure Relief Valve at 69 bar SS 316 with
Optional Cooling Using Refrigerated Chiller
Control Panel Temp. Controller: 0-199.9°C for heater, On/off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
