MS 09 MEMBRANE FILTRATION SETUP

DESCRIPTION

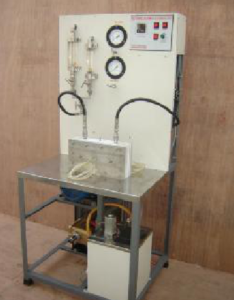

The membrane setup is mounted on a steel structure and can accommodate different sample holders. Filtration Cell/ sample holder can be pressurized using a high pressure pump. A rotameter is connected in retentate line and passed to retentate tank.



Permeate is collected from the bottom of the each cell through an outlet. The setup consists of appropriate feed inlet, Retentate outlet, piping, valves (SS) pressure gauge, pressure release valves, close valves, membrane mounting plates, gasket etc. so that system can run independently.



TECHNICAL DETAIL



Product & Code MEMBRANE FILTRATION SETUP & MS 09
Sample holder/ Membrane Cell (1) Flat Sheet Size 200 x 100 mm (Or as per customer requirement)

(2) Round disc module Dia 160 mm

(3) Radial Cell: Capacity: 500 ml, MOC SS 304
Material of construction of Membrane Cell Cell Body Acetal

O Rings Buna-N
Membrane support module Stainless steel (SS-304)

SS Plate type with fine mesh (02 numbers)
Feed Reservoir Capacity 5-8 Liter MOC – SS with Heater and stirrer controls  to adjust heating and string speed, Pump bypass for recirculation is provided
Feed pump Capacity 50 LPH , Pressure 20 kg

Motor speed variable from 0-1400 rpm, Operating pressure 15-20 bar
Retentate tank Suitable Capacity
Pressure Maximum operating 20Kg of the system
Pressure gauge 25 kg
Stirrer 0-1400 RPM with speed controller
Adequate no of Adequate no of sample membranes
Control Panel Temp. Controller: 0-199.9°C. On/off switch, Mains Indicator etc.
