MS 10
CROSS FLOW FILTRATION UNIT
| Product & code |
BENCH TOP STIRRED ULTRA FILTRATION MODULE & MS 10 |
| Lab UF Membrane |
Membrane Type : Flat Sheet, Membrane : 100 KD, Membrane Area : 0.2-0.3 sq m, MOC of Membrane : PES / PVDF |
| Feed Pump |
Pump : Diaphragm Type, Input : 230 V AC, 50Hz, 1 Ph, Flow : 100 lph, Pressure : 2 kg/cm2 Max, Adaptor 24 V : Provided |
| Backwash Pump |
Pump : Diaphragm Type, Input : 230 V AC, 50Hz, 1 Ph, Flow : 100 lph, Pressure : 2 kg/cm2 Max, Adaptor 24 V : Provided |
| Conc Pressure Gauge |
Range : 0-4 bar, Type: Bourdon, MOC of Casing : SS |
| Throttle Valve |
MOC : SS 304, Input : ¼ ” BSP |
| Feed Storage Tank |
MOC : SS 304, Capacity : 1.5 liters |
| Permeate Storage Tank |
MOC : SS 304, Capacity : 1.5 liters |
| Flow Meter |
Range : 0 – 100 lph |
| Interconnecting Pipes |
MOC : PU, Size : 6 / 4 |

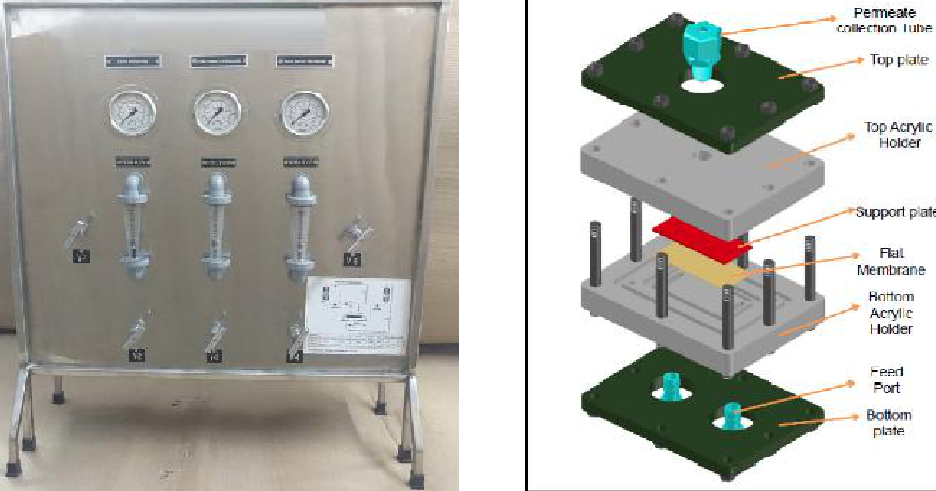

| Flat Sheet Membrane Cell |
Membrane Holder : Acrylic, Membrane Size Suitable : 50 mm x 110 mm, Effective Membrane Area : 30 mm x 70 mm, Seals : Nitrile, Operating Pressure : < 3 Kg/cm2, Operating Temperature :< 40 deg C, Feed Port, Conc. Port, Permeate Port : ¼” BSP Ferrule to suit 6/4 mm Pipe |
