MS 11

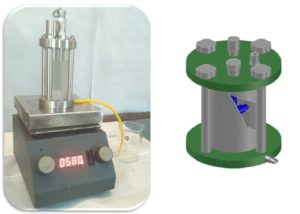

LOW PRESSURE STIRRED CELL UNIT
| Product & code |
Low Pressure Stirred Cell Unit – Dead End (Solvent Resistant) With Magnetic Stirrer & MS 11 |
| A. Cell |
Top and Bottom Plate: SS316, Cylinder: Glass, Stirring bar grip and coating: 17.3 CM2, Pressure: <6 Bars, ‘O’ Ring: Nitrile, Pressure Tube: Nylon, Funnel: PP, Max. Process Volume : 75 ml, Minimum process Volume : 2.5 ml, Hold-up Volume : 0.3 ml, Filter Size : 47mm Dia, Filter Area : 15 cm2, Dimensions : Base Diameter : 8 cm, Height : 124 cm |
| B. Magnetic Stirrer |
Top Size: 184 x 184mm approx, Speed: 100 to 1000 RPM Max., Auto Timer: 5min ON & 2 sec OFF, Supply: 230V. 50Hz AC, Size : 200 x 200 x 150mm Ht(approx), Performance : To achieve desired rpm in stirred cell |
