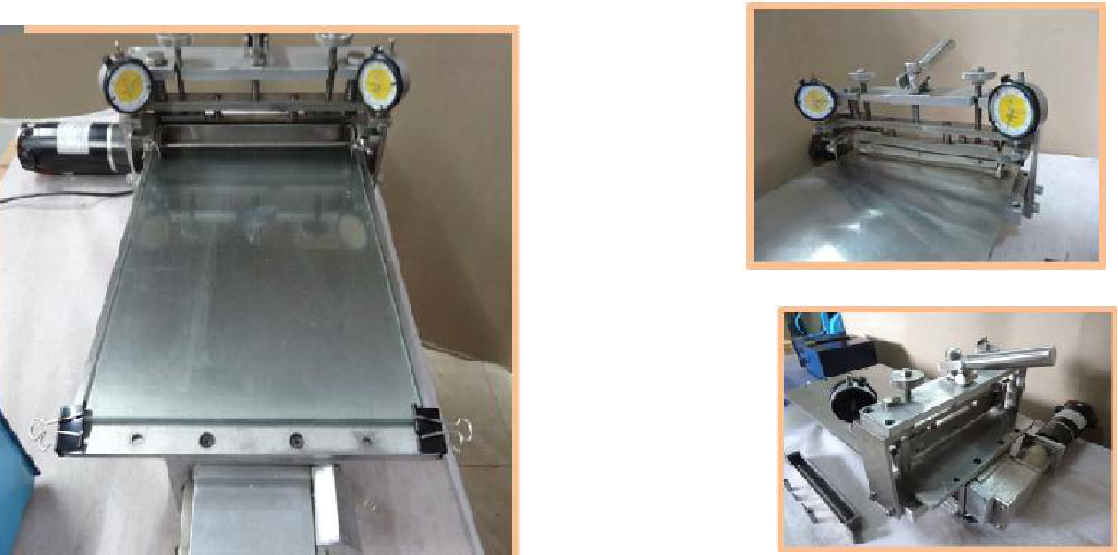

MS 13 SEMI AUTOMATIC FLAT SHEET MEMBRANE CASTING UNIT

OPERATION





  • Polymer Dope solution poured on to Glass plate within the area covered by precision blade
  • Membrane Thickness controlled through Micrometer arrangement on either side of the blade
  • Precision Blade drawn forward through motorized arrangement for uniform thickness of Dope solution
  • Speed of Blade settable by knob control manually
  • Cast Glass Plate manually removed & dipped into coagulation Bath for Membrane formation.

TECHNICAL DETAIL



Product & Code Semi Automatic Flat Sheet Membrane Casting Unit  & MS 13
Flat Sheet Membrane Size 200 mm x 250 mm
Casting Bed Glass Plate
Casting Blade SS 304
Casting Speed Control 50 – 100 mm/Sec
Film Thickness control 100 to 300 Microns
Head control Accuracy 10 Microns
Casting speed setting Knob control (Manually selectable)
Mounting Table Top
