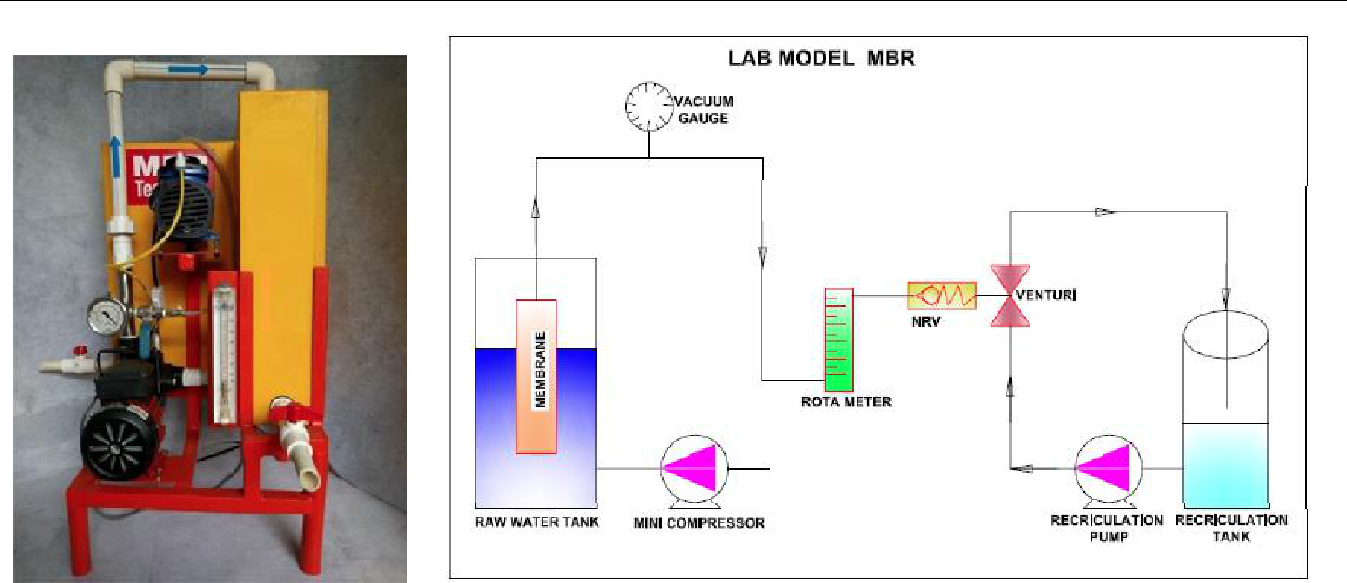

MS 15 LAB TEST SKID FOR MBR

TECHNICAL DETAIL



Product & Code LAB TEST SKID FOR MBR & MS 15
Effluent Tank Ventury Suction Flow FRP, Capacity Of Tank : 20 LITRS
Recirculation Pump Material Of Construction : CI, CAPACITY : 1/4 HP Single Phase, MOF Of Venturi : SS 304 / PVC, Permeate Flow : 5 LPH MAX,  With Venturi
Vacuum Gauge Range : -1 TO 0 KG/CM2
Recirculation Tank Capacity : 15 LTRS APPX, Material Of Construction : FRP
Rota Meter Flow 2 – 20 LPH, Material Of Construction Acrylic
Compressor Flow 15 LPM, Vacuum 22 HG, Temperature 55 DEG C
Overall Size 350 MM W X 400 MM L X 750 MM HT
The MBR Skid Can Accommodate Any Of The Membranes As Follows
2- Tiered Submerged MBR

(Optional On Demand)

 Membrane Area 0.4 Sq .Mtr,  Fiber Size: 1.4 MM OD x 0.8MM ID, MWCO 100 KD,  Membrane MOC PES, Shell MOC uPVC, Suction Connection ¼’’ BSP
3-Tiered Submerged MBR

(Optional On Demand)

 Membrane Area 0.6 SQ .MTR, Fiber Size 1.4 MM OD x 0.8MM ID, MWCO 100 KD, Membrane MOC PES, Shell MOC uPVC,

Suction Connection ¼’’ BSP
Flatsheet Submerged MBR

(Optional On Demand)

Membrane Area : 0.10 SQ .MTR, Fiber Size : 320mm L X 220mm W X 7.5mm TH, MWCO : 0.2-0.3 Micron, Membrane MOC : PVDF, Production : 40-70 LPD
