MT 02 YORK SCHEIBEL'S EXTRACTION COLUMN

Description



The setup is designed to demonstrate principles of extraction and mass transfer operation in a YORK SCHEIBEL’S column.

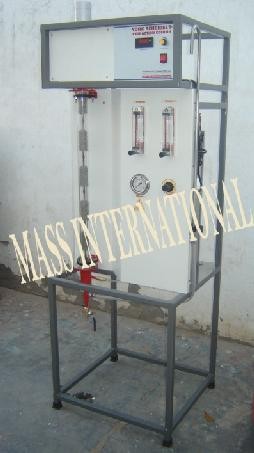

The set up consists of a glass column, feed tanks, air regulator with pressure gauge, receiving tanks and piping. Rotameter are provided for flow measurement.

The glass column is divided into multiple stages; each stage consists of a woven wire mesh (calming) section and a mechanical agitation section. The agitator speed can be varied by drive. The presence of alternatively agitating and calming sections yield higher extraction efficiency than conventional  packed column.



EXPERIMENTS

  • Determination of overall height of a transfer unit and overall volumetric mass transfer coefficient

FEATURES

  • Stainless Steel tanks and wetted parts
  • Special arrangement for changing height of interface zone
  • Continuous operation
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



UTILITIES REQUIRED

  • Electric supply: 230 +/- 10 VAC, 50 Hz, single phase
  • Chemicals for trial: as per your choice
  • Compressed Air  supply:        Clean, oil and moisture free air, pressure 2 Bar
  • Water Supply & Drain as required



TECHNICAL SPECIFICATIONS

Product & Code YORK SCHEIBEL'S EXTRACTION COLUMN & MT 02
Extraction Column Material Borosilicate Glass Dia. 45 mm, Height 750 mm (approx) with SS end cups & support plates
Packing Material Stainless Steel Woven mesh type for calming section
Agitator SS multiple impellers and shaft coupled with Variable Speed Motor.
Feed Tanks Material Stainless Steel (2 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Flow Measurement Rotameter (One each for solvent & solute)
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2) Air compressor (Optional)
Feed Piping Chemical Circulations By PVC/SS
Control panel Digital RPM Indicator non contact type. On/off switch, Mains Indicator etc

The whole setup is well designed and arranged in a good quality painted structure.
