MT 05 SOLID-LIQUID EXTRACTION (PACKED BED TYPE)

DESCRIPTION



This setup is designed to study the performance characteristics of solvent extraction of a particular component from a packed bed of solid material. The apparatus allows study of such systems as water

/ inorganic salts, water/sugar bed, methylene chloride / vegetable oil etc.

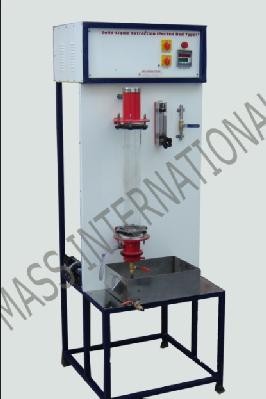

The set up consists of a glass column, feed tank, receiving tanks and piping. Rotameter are provided for flow measurement.

The glass column is fitted with SS mesh to support the solid material. The solvent is introduced near the bottom of the column and it flow upward counter currently to the solids. A pump supplies the solvent and flow rate is monitored by means of a Rotameter. Solvent feed tank is kept in a bath fitted with heater. A digital temperature controller is used to control and measure the temperature of feed.

EXPERIMENTS

  • To study the effect of various system parameters like, solvent temperature, solvent rate and particle on the % recovery of oil from solid

FEATURES

  • Stainless Steel tanks and wetted parts
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Electricity Supply: 1 Phase, 220 V AC, 5kW.
  • Solvent: 30ltrs
  • Solid: 10kg.
  • Table for setup support

TECHNICAL SPECIFICATIONS

Product & Code SOLID-LIQUID EXTRACTION (PACKED BED TYPE) & MT 05
Extraction Column Material Glass. Dia 80 mm, Height 500mm (approx.)
Rota meter Solvent Flow Measurement
Solvent Tank Made of Stainless Steel, Capacity 20 Ltrs. Double wall.
Feed circulation Magnetic Pump made of Polypropylene to Circulate solvent. Maximum working temperature is 75°C.
Heater Nichrome wire heater.
Receiving Tank With Filtration Sieve (for Extracted solid waste and solvent)
Feed Piping Chemical Circulations By PVC/SS
Temperature Sensor RTD PT-100 type.
Control panel Digital Temp. Controller: 0-199.9°C, On/off switch, Mains Indicator etc

The whole setup is well designed and arranged in a good quality painted structure.
