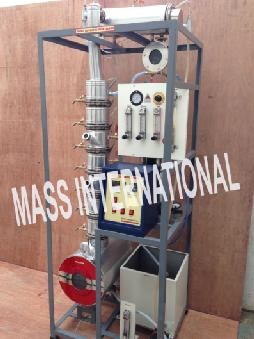

MT 06 BUBBLE CAP DISTILATION COLUMN

DESCRIPTION



The setup is designed to demonstrate principles of distillation in a Bubble Cap column.

The column is made of Stainless Steel with seven plates for mounting the bubble caps. An electrically heated re-boiler is installed at the bottom of the column. The vapors from the top of column are condensed in the shell and tube type condenser by circulating cooling water

The condensate is divided into reflux & distillate and R/D Ratio can be varied. Reflux is fed back to the column and distillate is received in a receiving tank. The complete column is insulated for minimizing the heat loss. Instrumentation is done for pressure & temp measurement wherever necessary/ required.



EXPERIMENTS

  • To study the Bubble Cap Distillation Column



 FEATURES

  • Stainless Steel wetted parts from shell & tube condenser
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up
  • Distilled water from concentration



 UTILITIES REQUIRED



  • Water Supply 2 LPM at 5 m head
  • Drain
  • Electricity Supply: 1Phase, 220 V AC, 6.5 kW
  • Required Chemicals
  • Refractrometer for analysis



TECHNICAL SPECIFICATIONS

Product & Code Bubble cap distillation column & MT 06
Distillation column SS, Dia.100 mm,
Packing Material Seven nos. plates with one bubble cap each
R/D Ratio R/D (Reflux/Distillate) ratio By automatic selectable time switch/Rotameter (2No.) Please confirm
Re-boiler: Made of Stainless Steel, provided with Pressure gauge (Bourdon type, 0- 2kg/cm2) & level Gauge. Safety valve & insulated with ceramic wool
Condenser Shell & Tube Type made of Stainless Steel.
Collection Tank Distillate & bottom product capacity 5 Ltrs. each
Receiving Tank With Filtration Sieve (for Extracted solid waste and solvent)
Heaters Nichrome wire heater S.S. tube
Piping PVC/SS
Control panel Digital Temp. Indicator: 0-199.9°C.with multi-channel switch On/off switch, Mains Indicator, Temp. Sensors RTD PT-100 type etc.
Feed Tanks Material Stainless Steel (1 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Measurement Rota meter for feed flow
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2) Air compressor (Optional)

The whole setup is well designed and arranged in a good quality painted structure.
