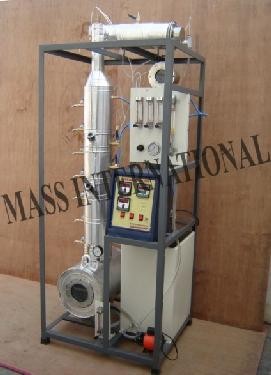

MT 07 SIEVE PLATE DISTILLATION COLUMN

DESCRIPTION



The setup is designed to demonstrate principles of distillation in a Sieve Plate Column.

The column is made of Stainless Steel material with seven sieve trays. An electrically heated re-boiler is installed at the bottom of the column. The vapors from the top of column are condensed in the shell and tube type condenser by circulating cooling water and it is supplied by laboratory overhead tank. The condensate is divided into reflux & distillate and R/D Ratio can be varied. Reflux is fed back to the column and distillate is received in a receiving tank. The complete column is insulated for minimizing the heat loss. Instrumentation is done for pressure & temp. Measurement wherever is necessary.

EXPERIMENTS



  • To study the Sieve Plate Distillation Column



 FEATURES

  • Stainless Steel wetted parts
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Water Supply 2 LPM at 5 m head
  • Drain
  • Electricity Supply: 1Phase, 220 V AC, 6.5 kW
  • Required Chemicals
  • Refractrometer for analysis

TECHNICAL SPECIFICATIONS

Product & Code Sieve plate distillation column & MT 07
Distillation column Material Stainless Steel Dia 100 mm
Packing Material Sieve plates seven nos.
R/D Ratio R/D (Reflux/Distillate) ratio By automatic selectable time switch/Rotameter (2No.) Please confirm
Re-boiler: Made of Stainless Steel, provided with Pressure gauge (Bourdon type, 0- 2kg/cm2) & Level Gauge. Safety valve & insulated with ceramic wool
Condenser Shell & Tube Type made of Stainless Steel.
Collection Tank Distillate & bottom product capacity 5 Ltrs. each
Heaters Nichrome wire heater S.S. tube
Piping PVC/SS
Temp. Sensors RTD PT-100 type
Control panel Digital Temp. Indicator: 0-199.9°C.with multi-channel switch On/off switch, Mains Indicator, Temp. Sensors , RTD PT-100 type etc.
Feed Tanks Material Stainless Steel, Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Feed Measurement Rota meter for feed flow
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2) Air compressor (Optional)

The whole setup is well designed and arranged in a good quality painted structure.
