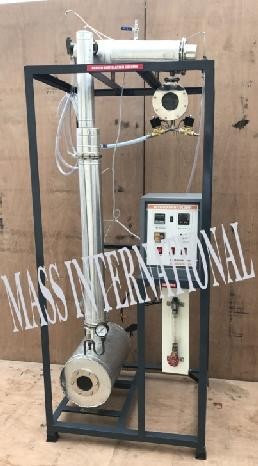

MT 08 PACKED DISTILLATION COLUMN

DESCRIPTION



The setup is designed to demonstrate principles of distillation in a Packed Column.

The column is made of Stainless Steel material packed with Borosilicate Glass rasching rings. An  electrically heated re-boiler is installed at the bottom of the column. The bottom product is collected in the tank. The vapors from the top of column are condensed in the shell and tube type condenser by circulating cooling water and it is supplied by laboratory overhead tank. The condensate is divided into ret1ux and distillate by automatic reflux divider and R/D Ratio can be varied. Reflux is fed back to the column and distillate is received in a receiving tank. The complete column is insulated for minimizing the heat loss. Instrumentation is done for pressure & temp measurement wherever is necessary.



EXPERIMENTS

  • To study the Packed Distillation Column



 FEATURES

  • Stainless Steel tanks and wetted parts
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Water Supply 2 LPM at 5 m head
  • Drain
  • Electricity Supply: 1Phase, 220 V AC, 6.5 kW
  • Required Chemicals
  • Refractrometer for analysis

TECHNICAL SPECIFICATIONS

Product & Code PACKED DISTILLATION COLUMN & MT 08
Distillation column Material Stainless Steel, Dia 80mm, Length 900 mm (approx)
Packing Material Borosilicate Glass Rasching Rings
Rotameter For cooling water flow rate measurement
Re-boiler: Made of Stainless Steel, provided with Pressure gauge (Bourdon type, 0-2kg/cm2) & Level Gauge. Safety valve & insulated with ceramic wool
Reflux Divider Special arrangement to change R/D ratio automatically
Condenser Shell & Tube type made of Stainless Steel.
Collection Tank Distillate Tank capacity 5 ltr (SS)
Heaters Nichrome wire heater
Piping PVC/SS
Temp. Sensors RTD PT-100 type
Control panel Digital Temp. Controller: 0-199.9°C, (For Re-boiler) Digital Temp. Indicator: 0-199.9°C, with multi-channel switch, On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
