MT 09

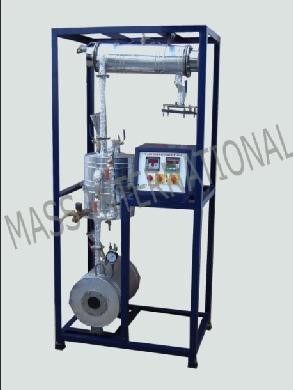

SIMPLE STEAM DISTILLATION SET-UP
DESCRIPTION
The equipment consists of jacketed pressure vessel for distillation. Steam from a steam generator can either be allowed to enter ‘in the outer jacket or in the vessel. The vapors form the top of the vessel are condensed in the shell and tube type condenser by circulating cooling water supplied by laboratory overhead tank. The condensate is colleted in a separating chamber. The set-up is fitted with steam trap control valves pressure gauge, temperature sensors and other instrumentations required.
EXPERIMENTS
- To study the Packed Distillation Column
FEATURES
- Stainless Steel tanks and wetted parts
- Superb Painted structure
- Simple to operate & maintain
- Compact & stand alone set up
UTILITIES REQUIRED
- Water Supply 2 LPM at 5 m head
- Drain
- Electricity Supply: 1Phase, 220 V AC, 6.5 kW
- Required Chemicals
- Refractrometer for analysis
TECHNICAL SPECIFICATIONS
| Product & Code |
SIMPLE STEAM DISTILLATION SET-UP & MT 09 |
| Distillation Vessel |
Jacketed Type Material Stainless Steel, Capacity 3 Ltrs. insulated with ceramic wool
|
| Steam Generator |
Made of Stainless Steel, provided with Pressure gauge (Bourdon type, 0-2kg/cm2) & Level Gauge. Safety valve & insulated with ceramic wool |
| Separating Chamber |
Compatible Capacity |
| Condenser |
Shell & Tube type made of Stainless Steel.
|
| Collection Tank |
Provided
|
| Heaters |
Nichrome wire heater |
| Piping |
PVC/SS |
| Temp. Sensors |
RTD PT-100 type |
| Control panel |
Digital Temp. Controller: 0-199.9°C, (For Re-boiler) Digital Temp. Indicator: 0-199.9°C, with multi-channel switch, On/off switch, Mains Indicator etc. |
The whole setup is well designed and arranged in a good quality painted structure.
