MT 10 ABSORPTION IN SIEVE PLATE COLUMN

DESCRIPTION

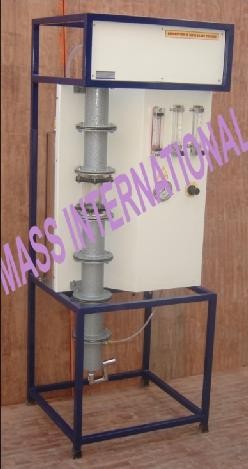

The set up consists of stainless steel column fitted with perforated plates, feed tank, CO2 cylinder with regulator, air regulator with pressure gauge, Rotameter, receiving tanks and piping. Metered quantity of fluid is distributed over the packing/perforated plates while metered gas and airflow is passed through the bed vertically upwards. The gas air mixture is absorbed in the liquid. All the flow rates can be independently varied to simulate different conditions and by measuring the concentration of gas absorbed in the liquid the overall volumetric mass transfer coefficients can be calculated.



EXPERIMENTS

  • Determination of overall gas transfer coefficient

FEATURES

  • Continuous operation
  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up
  • Borosilicate glass section for visualization the process



UTILITIES REQUIRED

  • Electric supply :230 +/- 10 VAC, 50 Hz, single
  • Chemicals for trial Sodium Hydroxide (NaOH)- 40gm, Hydrochloric Acid (HCl) 1N- 500ml, Barium Chloride (BaCl2) – 100gm, Phenolphthalein indicator-10ml, Methyl orange indicator- 10ml (Or as per your choice)
  • Compressed Air supply using a compressor: Clean, oil and moisture free air, pressure 5
  • Water Supply & Drain as required

TECHNICAL SPECIFICATIONS

Product & Code ABSORPTION IN SIEVE PLATE COLUMN & MT 10
Extraction Column Material SS, Dia 80mm, Length 750 mm (approx) with SS end cups & support plates
Packing Material Perforated/sieve Plates Material SS (7 Nos.)
Feed Tanks Material Stainless Steel (1 Nos.), Capacity 20 Ltrs. with level indicators, air release valves, charging funnel with valve, air pressure fittings, feed lines, drain valve etc.
Flow Measurement Rotameter (One each for feed, air, CO2)
Feed Circulation By Compressed Air, using PU pipe line & fittings Pressure Regulator Bourdon type (0-2 kg/cm2) Air compressor (Optional)
CO2 cylinder With regulator
Feed Piping Chemical Circulations By PVC/SS
Receiver tank Compatible capacity
Air & gas mixer Material SS

The whole setup is well designed and arranged in a good quality painted structure.
