MT 16 NATURAL DRAFT TRAY DRYER

DESCRIPTION



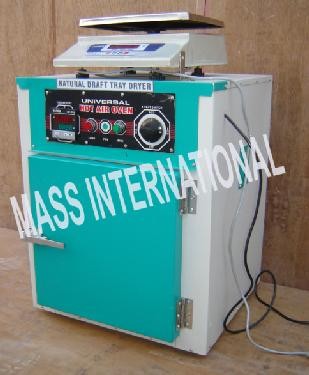

The set-up is designed to demonstrate and stimulate the moisture removal by heat under natural draft action created by hot air stream.

The set-up consists of an insulated double wall chamber. Inside the chamber a tray is attached directly to an electronic weighing balance, which is fitted on top outside the chamber. Material for  drying is placed in the tray and regular loss of weight is monitored. Air works as the drying agent by natural action removes the moisture from the tray by passing towards the top openings. A digital temperature controller is used to control and measure the temperature of air stream.

EXPERIMENTS

  • Determination of rate of drying of wet sawdust under different conditions of temperature



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



UTILITIES REQUIRED

  • Electric supply: 230 +/- 10 VAC, 50 Hz, single phase
  • Material Saw dust @ 1Kg.
  • Support table Size: 500Wx500Dx750H in mm

TECHNICAL SPECIFICATIONS

Product & Code NATURAL DRAFT TRAY DRYER & MT 16
Drying Chamber Material Stainless Steel size 30 x 30 x 30 cm insulated by Ceramic wool and housed in a MS Chamber.
Tray Material Aluminium / Stainless Steel
Weighing Balance Digital, 0-500 gm of + 1 gm resolution
Heater Nichrome wire heater
Control panel Digital Temp. Controller: 0-199.9°C, (For air heating chamber) On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
