MT 17 FORCED DRAFT TRAY DRYER

DESCRIPTION



The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream.

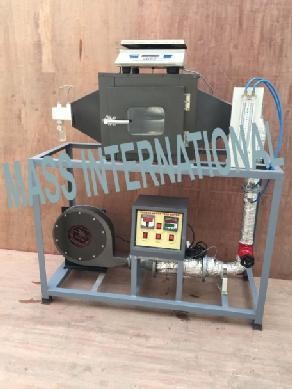

The set-up consists of an insulated double wall chamber. Inside the chamber a tray is attached directly to an electronic weighing balance, which is fitted on top outside the chamber. Material for  drying is placed in the tray and regular loss of weight is monitored. Air from blower passes through heating chamber to produce hot air works as the drying agent entered from one side of the chamber and leave the chamber from other side removes the moisture from the tray. An arrangement is made to vary and measure the airflow rate. A digital temperature controller is used to control and measure the temperature of air stream.



EXPERIMENTS

  • Determination of rate of drying of wet sawdust under different conditions of temperature and air flow

FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Electric supply: 230 +/- 10 VAC, 50 Hz, single
  • Material: Saw dust @ 1 Kg
  • Anemometer : Air flow measurement

TECHNICAL SPECIFICATIONS

Product & Code FORCED DRAFT TRAY DRYER & MT 17
Drying Chamber Material Stainless Steel size 20 x 20 x 25cm insulated by Ceramic wool and housed in a MS Chamber
Tray Material Aluminium / Stainless Steel
Weighing Balance Digital, 0-500 gm of + 1 gm resolution
Hot Air Circulation FHP blower, Arrangement is done to vary the air flow rate.
Air flow measurement Pitot tube with manometer
Heating Chamber Compatible capacity
Heater Nichrome wire heater
Control panel Digital Temp. Controller: 0-199.9°C, (For air heating chamber) On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
