MT 18 FLUIDIZED BED DRYER

DESCRIPTION



The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream and fluidization property of solid to dry.

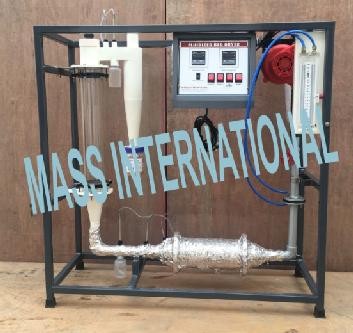

The set-up consists of a specially designed, vertical Column. The lower conical portion of the column is filled with moist solids. The material is supported on the screen mesh held between two flanges. Air from blower passes through heating chamber to produce hot air works as the drying agent entered from lower side of the column and leave the column from top outlet removes the moisture of solids. At the top outlet of column a cyclone is provided to collect the solid particles taken out by the air stream. An arrangement is made to vary and measure the airflow rate. A digital temperature controller is used to control and measure the temperature of air stream.

EXPERIMENTS

  • To study the fluidized bed drying



 FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Electric supply: Provide 230 +/- 10 VAC, 50 Hz, single phase
  • Material: Saw dust @ 1Kg. Granular & free    flowing solid of size I – 2 mm
  • Anemometer: Air flow measurement

TECHNICAL SPECIFICATIONS

Product & Code FLUIDIZED BED DRYER & MT 18
Drying Chamber Material Borosilicate Glass/SS Dia. 80 mm. Total Length 500mm with one end conical
Hot Air Circulation FHP blower, Arrangement is done to vary the air flow rate.
Cyclone Separator Compatible Capacity with collector
Air flow measurement Pitot tube with manometer
Heating Chamber Compatible capacityr
Heater Nichrome wire heater
Control panel Digital Temp. Controller: 0-199.9°C, (For air heating chamber) On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
