MT 19 ROTARY DRYER

DESCRIPTION



The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream and shower of moist solid due to rotary action of dryer drum.

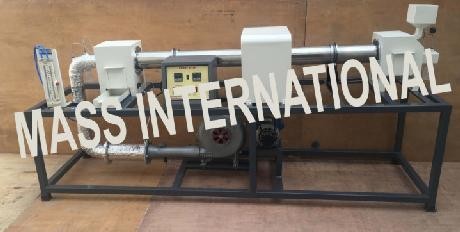

The set-up consists of a long cylindrical shell slightly inclined towards the outlet rotating at low RPM. Counter current hot air from blower passes through heating chamber to produce hot air works as the drying agent entered from one side of the rotating shell and leave from other side removes the moisture from the moist solids. High moisture content feed enters from one end of the shell and low moisture content product discharges from the other end of shell. As the shell rotates internal flights lift the solids and shower them down through the interior of the shell. This action increases the contact of wet solid against hot-air making the dryer very effective.

An arrangement is made to vary and measure the airflow rate. A digital temperature controller is used to control and measure the temperature of air stream.



EXPERIMENTS

  • To study the operation of a Rotary Dryer
  • To study the drying characteristics of a solid material under batch drying condition in a rotary dryer



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



UTILITIES REQUIRED

  • Electric supply: 230 +/- 10 VAC, 50 Hz, single phase
  • Material :Saw dust @ 1Kg. Granular and free flowing solid of size I – 2 mm
  • Anemometer :Air flow measurement



TECHNICAL SPECIFICATIONS

Product & Code ROTARY DRYER & MT 19
Drying Chamber Shell Material Stainless Steel, Length 1 m, Dia 110mm with Feed Hopper and Product Receiver
Rotating Action Motorized
Hot Air Circulation FHP blower, Arrangement is done to vary the air flow rate.
Air flow measurement Pitot tube with manometer
Heating Chamber Compatible capacityr
Heater Nichrome wire heater
Control panel Digital Temp. Controller: 0-199.9°C, (For air heating chamber) On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
