MT 21 SWENSON WALKER CRYSTALLIZER

DESCRIPTION

The set-up is designed to demonstrate and stimulate the phenomena of crystallization. Swenson Walker crystallizer is a continuous type crystallizer. This operation involves both heat and mass transfer. Crystallization is the formation of solid particles within a homogeneous phase. Its wide use has a two-fold basis; a crystal formed from an impure solution is itself pure.

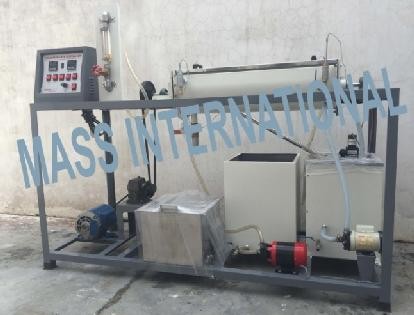

The setup consists of a top open jacketed round bottom trough. A ribbon mixer is provided in crystallizer trough, which rotates at low rpm for agitation of saturated solution. The saturated solution is prepared in a tank fitted with heater and a stirrer. This hot saturated solution is fed at one end of the crystallizer and flows slowly towards the other end while being cooled and is allowed to flow back in hot feed tank making the process continuous. The crystals sediments at the bottom of the trough, and can be washed out at the end of process. Arrangement for Cooling water circulation and flow measurement in jacket is made by using storage type water tank, a pump and a rotameter. Necessary instrumentation is done for temp measurement.

EXPERIMENTS

  • To study the performance of a Swanson Walker Crystallizer
  • To determine the crystal yield and the efficiency of crystallizer



 FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



 UTILITIES REQUIRED

  • Chemicals: commercial grade material as per choice

TECHNICAL SPECIFICATIONS

Product & Code Swenson Walker Crystallizer & MT 21
Crystallizer Trough Jacketed Type Material SS, Cap.8 Ltrs. with Round bottom
Crystallizer Stirrer Ribbon Type, MOC SS Driven by FHP, Variable Speed drive at low RPM 6-8
Feed Tank MOC SS, Double Wall, insulated with ceramic wool Cap. 20 Ltrs. Fitted with Nichrome wire heaters .
Stirrer for Feed Tank Stainless Steel Impeller and shaft driven by FHP motor.
Feed Circulation Magnetic Pump made of Polypropylene to Circulate feed. Maximum working temperature is 80°C
Cooling Water Tank Material Stainless Steel, Capacity 30 litre
Water Circulation FHP pump, Arrangement is done to vary & measure the flow rate. Using rotameter
Receiving Tank Material Stainless Steel, Capacity4 litre with SS sieve
Temp. Measurement RTD PT-100 type Temp. Sensors
Control panel Digital Temp. Controller 0-199.9°C for Feed Tank, Digital Temp. Indicator: 0-199.9°C, with multi channel switch, On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
