MT 26 ION EXCHANGE

DESCRIPTION

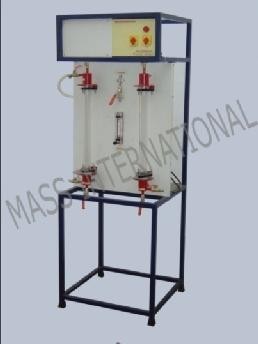

The set up consists of two glass column packed with Anion and Cat ion exchanger resin up to suitable height. The layer of the glass wool is placed on top of the resin bed. The feed is allowed to enter from the bottom of the first column and comes out of the top, which is again passed through the second column in the same fashion. A digital conductivity meter measures the conductivity of liquid coming out of the second column. Flow rate of water is measured with the pre-calibrated Rotameter. A tank with FHP pump with flow control valve and by pass arrangement is provided for feed circulation.



EXPERIMENTS

  • To de ionize water to make it soft and to determine the exchange rate and saturation point



FEATURES

  • Superb Painted structure
  • Simple to operate & maintain
  • Compact & stand alone set up



UTILITIES REQUIRED

  • Water supply & Drain
  • Electricity Supply: 1 Phase, 220 V AC, 0.5

TECHNICAL SPECIFICATIONS

Product & Code ION EXCHANGE & MT 26
Column MOC Borosilicate Glass/ SS Dia 35 mm, Length 500 mm (approx.) with SS end cups & support plates
Water Feed Tanks Material Stainless Steel, 3 sump tank for regeneration test solution & wash solution are provided. With feed lines, drain valve etc.
Flow Measurement Rotameter (for feed) .
Feed Circulation By FHP chemical resistance Pump using Pvc pipe line & fittings
Feed Piping Chemical Circulations By PVC/SS size 1/4'’
Stop Watch Electronic type
Conductivity measurement Digital Conductivity Meter (Supplied)
Control panel On/off switch, Mains Indicator etc.

The whole setup is well designed and arranged in a good quality painted structure.
