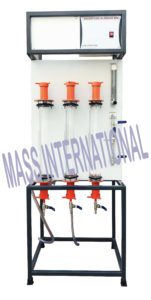

The setup consist of three vertical column packed with activated charcoal. The columns fitted are of different diameter and packing heights can be arranged as per individual’s requirement to make a comparative study). Columns are operated individually. Feed is entered to the individual column from the bottom and samples are collected from the top at regular interval of time.
Rotameter is provided to measure the flow rate. Pump with a feed tank is provided for fluid flow.
EXPERIMENTS
To obtain the breakthrough curve and hence length of unused bed for the given adsorption system.
UTILITIES REQUIRED
Water Supply & Drain
Electricity Supply: I Phase, 220VAC, 1.5kW.
Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted
TECHNICAL SPECIFICATIONS
Product & Code
Adsorption Setup & MT 27
Reactor Column
Material Borosilicate Glass, different diameter with different height of packing (3 Nos.)
Column 1: 32mm Dia x 500 mm length
Column 2: 45mm Dia x 500 mm length
Column 3: 55mm Dia x 500 mm length
Feed Tank
Material Stainless Steel, Capacity 20 Ltrs., feed lines, drain valve etc.
Receiving Tank
Capacity 20 Ltrs approx.
Feed Circulation
By FHP chemical resistance Pump using Pvc pipe line & fittings
Flow Measurement
Rotameter (for feed)
Feed Piping
PVC / SS size ¼”
Stop Watch
Electronic
Control Panel
On off switch, Mains Indicator etc.
The setup is painted with good quality paints & mounted on a strong support.
