The set-up is designed to demonstrate and stimulate the moisture removal by heat under vacuum action.

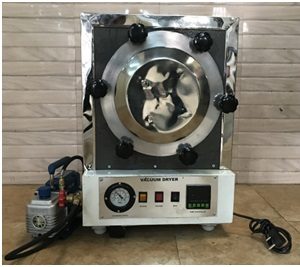

The set-up consists of an insulated double wall chamber. Inside the chamber a tray is fixed. Material for drying is placed in the tray. A digital temperature controller is used to control and measure the temperature of air stream.
EXPERIMENTS
Determination of rate of drying of wet sawdust under different conditions of temperature and vacuum.
FEATURES
Superb Painted structure
Simple to operate & maintain
Compact & stand alone set up
UTILITIES REQUIRED
Electric supply: 220 VAC, 50 Hz, single phase.
Material: Saw dust @ 1Kg.
TECHNICAL DETAILS
Product & Code
VACUUM Dryer& MT 40
Drying Chamber
Chamber Size: – 12″x 12″ x 12″
Double Walled construction, Inner round chamber made out of stainless steel, exterior made our of mild steel duly finished in white stoving enamel/powder coated paint with mat finished color combinations.
The body capable of withstanding vacuum of 760mm hg
Supplied with vacuum pump
Tray
Material Aluminium / Stainless Steel
Weighing Balance
Digital, 0-500 gm of + 1 gm resolution (supplied)
Heater
Nichrome wire heater
Control panel
Temperature range Digital Temp. Controller Ambient to 100°C, On/off switch, Mains Indicator etc.
