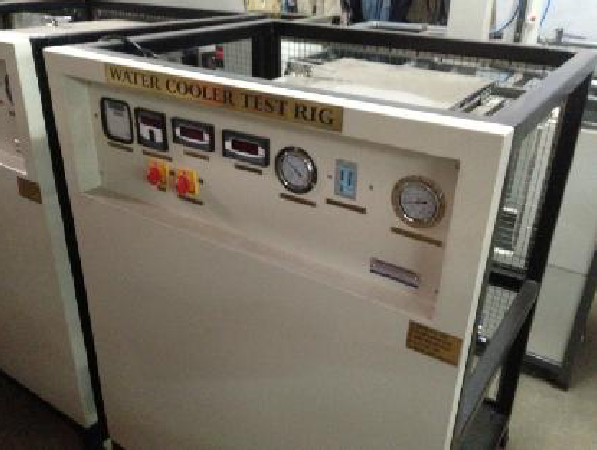

TD 10 WATER COOLER TEST RIG

THE APPARATUS CONSIST OF:

COMPRESSOR: – Hermetically Sealed Compressor to work on 220V AC 50 HZ operate on 134A Refrigerant with Standard Electrical Accessories.

CONDENSER: – Suitable Fins and Tube Air-Cooled Condenser shall be provided.

FAN MOTOR: – 1/35 H.P Condenser Fan Motor with fan shall be provided.

CAPILLARY EXP VALVES: – Capillary exp valve shall be provided.

WATER COOLER: – With double wall insulation of suitable size shall be provided.

CONTROL AND STANDARD ACCESSORIES

1. Energy meter for measure of power in Kw for input to compressor.

2. Filter cum driver.
3. Imported gauges gas for R 134 a suction and discharge original.
4. Digital temperature indicator with probes.
5. Digital voltmeter.
6. Digital Amp meter.
7. 32 Amp D.P. with power switches.
8. Gas changing valve imported.
9. Indication light.
