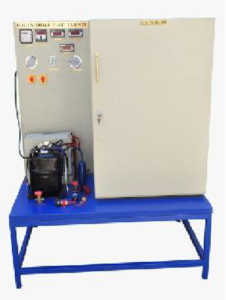

TD 11 COLD STORAGE PLANT TRAINER

This unit consists of a hermetically sealed compressor with air cooled condenser. A capillary or expansion valves are next to condensers followed by medium temperature evaporators. Electrical energy supplied to the compressor can be measured by energy meter. This Test Rig is used to perform the following experiments.

TECHNICAL SPECIFICATIONS

Compressor Emerson / Tecumshah Hermetically sealed compressor
Compressor Capacity capacity 0.8 Ton
Condenser Suitable for above compressor with suitable cooling fan & Fins and copper Tube Air Cooled.
Structure Size (Inner) 24 x24 x 36 inch (Approx.)
Cold Storage Room Inner chamber GP Sheet & Outer Stainless steel with insulated
Expansion Device Capillary Tube & Filter / Drier
Pressure Gauge 2 Nos. for high and low pressure
Service valves 4 Nos. Hand set valve
Refrigerant Freon – 22 /134a
Rotameter Suitable for Compressor capacity Glass tube Rotameter.
Control Panel 1. Main Switch 2. Voltmeter Digital type – 1 Nos. 3. Amp. Meter Digital type – 1 Nos. 4. Energy Meter for Compressor input. 5. Switches Indication Lights etc. 6. H.P. / L.P. cut out 7. Digital Temperature Indicator: 5 Nos. 8. Temperature Sensor (Thermocouple) : 5 Nos. 9. Voltage - Single Phase 220 Volts 50Hz. AC Supply.
