SL-120 REDUNDANT JOINT APPARATUS

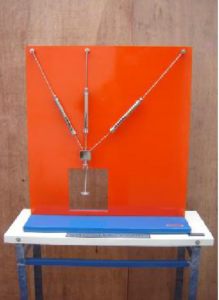

The Apparatus consists of three suspension members (spring balances) of different stiffness which are jointed at a point to form the redundant joint. The upper end of the suspension members being tied in a position to a vertical wooden board. Arrangement is provided on a paper and also elongations and forces in the suspension members by the help of dial gauges. Two dial gauges with 25mm travel (with magnetic bases) are to be supplied with the apparatus. Apparatus is supplied completer with a supporting stand and a set of weight.
