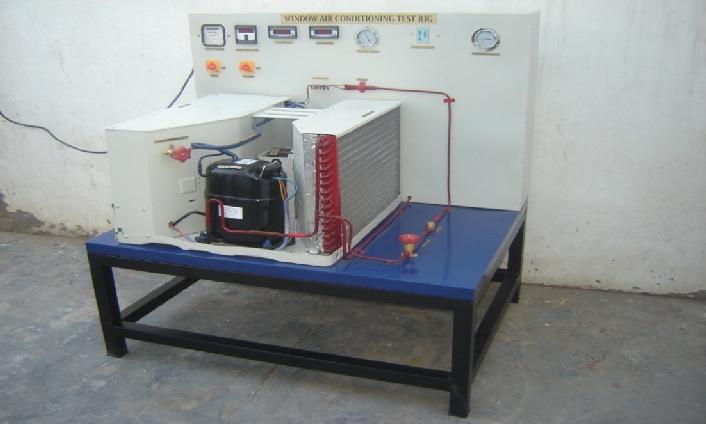

TD 02 WINDOW TYPE AIR CONDITIONING CYCLE TEST APPARATUS

THE APPARATUS CONSIST OF:-

• COMPRESSOR: 1 Ton of refrigeration hermetically sealed compressor of any standard make (01 No)
• CONDENSER: Forced draft finned type copper coiled air cooled condenser with fan motor. (01 No)
• EXPANSION UNIT: Capillary expansion valve (01 No)
• EVAPORATOR UNIT: Forced draft finned type copper coiled air cooled evaporator. (01 No)

CONTROL PANEL UNIT:-

• Digital temperature Indicator with selector switch with set of thermocouples is mounted on various locations. (01 No)

• Cam operated On-Off switch. (02 No)
• Voltmeter provided for voltage measurement. (01 No)
• Ammeter provided for load measurement. (01 No)
• Energy meter for power measurement (01 No)
• 0 to 350 PSI Pressure Gauge in delivery line. (01 No)
• -30 to 0 to 150 PSI compound Gauge mounted on suction line. (01 No)
• HP & LP safety cutout is used as a safety.(01 No)
• Anemometer : For Air Velocity Measurement (01 No)

Whole unit is fitted on strong and sturdy supporting stand with appreciate color combination powder coating.
