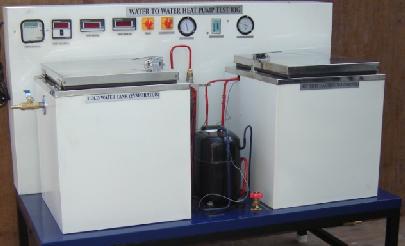

TD 05 MECHANICAL HEAT PUMP TEST RIG (WATER TO WATER)

DESCRIPTION



The heat pump comprises of a compressor, a condenser with fan, an expansion valve and an evaporator. These components are connected to each other via a refrigeration circuit. The refrigerant circulates in the refrigeration circuit powered by the compressor. Condenser and evaporator are provided with water cooling facility. In condenser, heat is taken away by the water in order to reduce the temperature of the gas in pipeline and hence the temperature of the water gets increased. In evaporator heat of water is absorbed by the refrigerant gas results in reducing the temperature of the water in the evaporator chamber. In this way the water in the evaporator chamber gets cooled and the water that is available in the condenser chamber gets heated-up by this same refrigeration cycle. In this way by using the same refrigeration cycle temperature of water in one chamber gets increased while in another gets decreased.



EXPERIMENTS



  • Design and operation of an water-to-water heat pump
  • Representation of the thermodynamic cycle in the log p-h diagram
  • Energy balances
  • Dependence of the real coefficient of performance on the temperature difference (water-to-water)



FEATURES



  • Clear and self descriptive set-up
  • Color coding of copper pipes for quick and easy understanding of refrigeration cycle
  • Open circuit of cycle for convenient understanding of various components.



UTILITIES REQUIRED:



  • Electric supply 220V AC, Single Phase @ 50Hz with earth.
  • Water supply Tap water connection ½” BSP for water calorimeter.
  • Lab Floor Area with Drain facility



TECHNICAL DETAILS:



Product MECHANICAL HEAT PUMP TEST RIG (WATER TO WATER)
Product code TD 05
Compressor Emerson Copeland/equivalent of suitable capacity
Evaporator cooling Tank Suitable Capacity, MOC SS, double walled, insulated by ceramic wool
Condenser Tank Suitable Capacity, MOC SS, double walled, insulated by ceramic wool
Condenser Compatible capacity with fan for forced cooling
Pump (2 Nos) One each for agitation of water in condenser and evaporator tank
Expansion device Capillary tube Solenoid & Thermostatic valve.
Piping Copper
Rotameter for water Suitable Range
Rotameter for Refrigerant Suitable Range
Pressure and Vacuum Gauge One each for refrigerant
Temperature Sensors RTD Pt-100
Digital voltmeter 0-300 Volts
Digital Ampere meter 0-10 ampere
Safety Control Time delay in case of power failure
