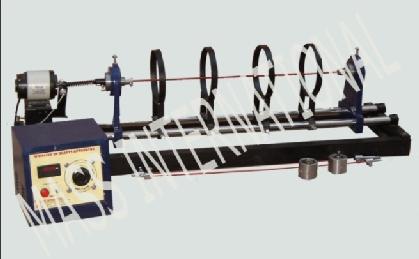

TOM 03 WHIRLING OF SHAFTS DEMONSTRATOR

DESCRIPTION

The set up is designed to study the whirling of shafts. The set-up consists of a sturdy M.S. frame, variable speed motor bearing holders etc. Different bearing can be fitted in bearing block to have different end conditions i.e. (i) both end fixed, (ii) one end free and one end fixed etc. A variable speed motor is provided to drive the shaft along with speed control unit as the test is destructive, hence the shaft cannot be used again.


RANGE OF EXPERIMENTS

  • • Display of various modes of whirl for a shaft with
  • a) Both ends directionally fixed.
    b) One ends fixed and other free
    c) Both ends directionally free.
  • • Modes of vibrations can be studied and frequency can be measured in each case.


UTILITIES REQUIRED

  • • Floor area of 2m x 0.5 m
  • • Electric supply of 230V, AC


FEATURES

  • • Compact & stand alone set up
  • • Superb Painted structure
  • • Simple to operate & maintain


TECHNICAL SPECIFICATIONS

Product & Code Whirling of Shaft Demonstrator & TOM 03
Test Shafts Length : 1000 mm each. Diameter : 2, 3, 4 mm (approx.) Quantity : Two each.
RPM measurement Digital RPM Indicator with Proximity sensor
Kinematic coupling bearing for fixed or free ends without restraint.
Drive Motor FHP (1/6 HP), 6000 RPM, Single phase, 220 V (AC-DC) Variable Speed.
Control Panel Comprises of speed control unit & RPM Indicator
