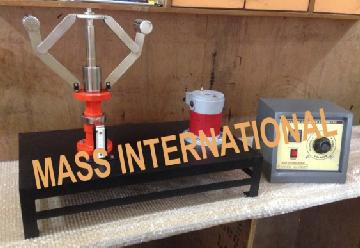

TOM 07 UNIVERSAL GOVERNOR APPARATUS

DESCRIPTION

The set-up is designed to study the working of different governors normally used to control the speed. It consists of a main spindle, mounted vertically on the base plate. This spindle is driven by a variable speed Motor which is also mounted vertically on the same base plate. Anyone governor assembly out of four can be mounted on spindle. Speed control unit controls the spindle speed. A graduated scale is fitted to the sleeve to measure the displacement.


RANGE OF EXPERIMENTS

  • • Determination of characteristic curve of a position against speed of rotation governors
  • • To study the effect of varying the mass of the center sleeve in Porter and Proell Governor
  • • To study the effect of varying the initial spring compression in Hartnell Governor
  • • To study the determination of characteristics curves of radius of rotation against controlling force (Actual & Theoretical) for all governors


UTILITIES REQUIRED

  • • Power Supply: 230 V AC, Single Phase
  • • Floor Space: 1.5 x 1.5 m
  • • Tachometer to find out RPM


FEATURES

  • • Compact & stand alone set up
  • • Superb Painted structure
  • • Simple to operate & maintain


TECHNICAL SPECIFICATIONS

Product & Code Universal Governor Apparatus & TOM 07
Governor Mechanism Four different types of governor mechanism with spring and weights
1. Watt Governor
2. Porter Governor
3. Hartnell Governor
4. Proell Governor
Motor ½ HP, PMDC Motor flange mount, Single phase, 220
Control Panel VAC Comprises of speed control unit & RPM indicator.
RPM measurement Digital RPM Indicator with Proximity sensor
