Specification
[1] Softening and desalination with ion exchange
[2] Cation and anion exchangers usable separately and in combination
[3] Regeneration of ion exchangers

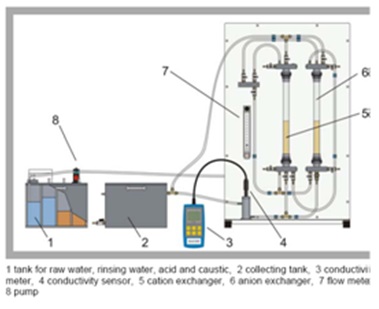

[4] Tank with 4 chambers for raw water, rinsing water, acid and caustic
[5] Diaphragm pump to transport raw water, rinsing water, acid and caustic
[6] Collecting tank for treated water, rinsing water, acid and caustic
[7] Continuous measurement of conductivity and flow rate
Technical Data
| Product & Code |
Ion Exchange & WT-08 |
| Ion exchanger
|
– material: network polymer
– cation exchanger: H+ form
– anion exchanger: OH- form |
| Diaphragm pump
|
– max. flow rate: 300mL/min
– max. head: 10m |
| Tank
|
– 4 chambers
– capacity: each approx. 5L
– material: PVC/SS |
| Collecting tank
|
– capacity: approx. 20L
– material: PVC/SS |
| Measuring ranges
|
– flow rate: 20…270mL/min
– conductivity: 0…2000μS/cm |
| Weight |
approx. 80 kg |
| Connection |
230V, 50/60Hz, 1 phase |
