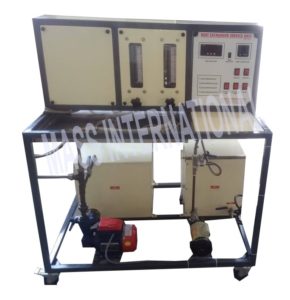

This experimental unit can be used to investigate and compare different heat exchanger designs. Water is used as the medium. The heat exchanger to be investigated is connected to the service unit. The hot and cold water flows through the heat exchanger. Reversing the water connections changes the direction of flow and thus allows parallel flow or counter flow operation.
The main function of the service unit is to provide the required cold and hot water circuits for the heat exchanger which is under study and placed on to it. The facility of placing two heat exchangers at a time is provided with individual flow and temperature measuring arrangement. This unit designed in this way that two users can perform investigations on selected heat exchanger, independently, at a time. The service unit is equipped with a heated tank and pump for the hot water circuit, cold water pump and water tank, connections for the cold water circuit and a switch cabinet with displays and controls.
A digital temperature controller controls the hot water temperature. The flow in the hot water and cold water circuit is adjusted using valves and measured by individual Rotameters.
FEATURES
Simple to operate & maintain
Service unit for heat exchangers
Water connections with quick-release couplings
Flow adjustable using valves
UTILITIES REQUIRED
Cold water supply: Continuous cold water supply @ 20 LPM, 0.5 bar max at constant head condition.
Electricity Supply: 230VAC 50Hz, 1 Phase with 32 Amp MCB along with neutral and earth connection.
Floor space: 2 m x 1.5 m
Floor Drain Required
TECHNICAL DETAILS
Product & Code
Heat Exchanger Service Unit & PROJ-1
Hot Water Pump
Pump: Magnetic Pump.
Power : FHP
Temperature Range : Ambient to 75°C
Cold Water Pump
Pump: Centrifugal Pump.
Power : FHP
Heater
Type: Immersion Heater.
Power: 6 kW max.
Material : Nichrome Wire
Hot Water Tank
Material : Stainless Steel
Capacity : 15 Ltrs.
Cold Water Tank
Material : Stainless Steel
Capacity : 50 Ltrs.
Flow Measurement
Rotameters: Glass Tube Type.
Quantity: 4 Nos. (2 For Cold Fluid and 2 For Hot fluid).
Range : 1-10 LPM (approx)
Connections For Heat Exchange
Type: Non-Spill, Quick Release Coupling.
Size: ½ inch.
Piping: Flexible Silicone Pipe.
Quantity : 8 Nos.
Temperature Measurement
Temperature Sensor: RTD Type.
Range : 0 to 100°C
Quantity : 9 Nos.
Temperature Controller
Type : Digital Display, Proportional Derivative Integral Controller
Range : Ambient to 100°C
Input : RTD Type
Output: SSR.
Temperature Indicators
Type : Digital Display
Quantity: 2 Nos.
Range : 0 to 100°C
Input : RTD Type
Control Panel
All control and on-off switches, Digital Panel Meters and Pilot Lamp Indicators are mounted on the front of control panel. User can easily access the Panel as it is provided at suitable height.
Mobility
The unit is provided on 4 Nos. of wheels base for the easy transportation on the laboratory floor.
Dimensions
1.5 x 1 x 1.5 m approx
Painted Rigid MS Structure Is Provided To Support All Parts
