FM-HB HYDRAULIC BENCH

DESCRIPTION

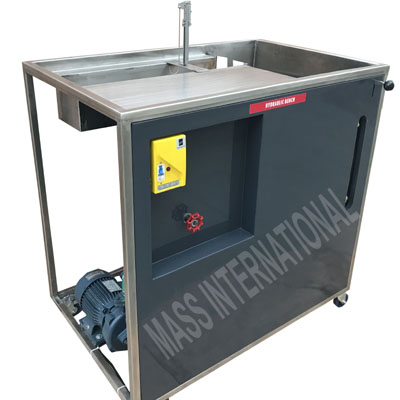

The present set-up is a self-contained, water re-circulating unit provided with a top tray and a sump tank. Various hydraulics experiments can be conducted on this set-up. A Centrifugal Pump is fitted for water circulation. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch. Water collected on the top tray from experimental set-up, drains and return to sump tank.


RANGE OF EXPERIMENTS

Following experiments can be carried out with common basic table, with separate experimental set-ups (supplied at extra cost), which can be connected to hydraulic bench with flexible pipe:

  • Bernoulli’s Theorem Apparatus
  • Orifice and Mouth Piece
  • Flow measurement by Venturimeter
  • Flow measurement by Orifice meter
  • Losses due to Friction in Pipe Lines
  • Losses in Pipe fittings and pipe bends
  • Tilting Flume
  • Reynolds’s Number study
  • Flow over notches
  • Impact of Jet on Vanes
  • Study of Pressure Measurement
  • Pitot Static Tube
  • Forced Vortex Apparatus
  • Free Vortex Apparatus


FEATURES

  • Closed loop water circulation
  • Compact & stand alone set up
  • Stainless Steel tanks and wetted parts
  • Superb Painted structure
  • Simple to operate & maintain


UTILITIES REQUIRED

  • Electric supply 230 +/- 10VAC,50Hz,1 phase
  • Water supply Tap water connection ½” BSP
  • Distilled water @ 80 liters (optional)
  • Floor Area 1.5 x 1.5


TECHNICAL SPECIFICATIONS

Product & Code Hydraulic Bench & FM-HB
Top Tray Size 1000 x 600 x 90 mm MOC SS
Water Circulation ½ HP pump,
Measuring Tank Capacity 40 Ltrs. MOC SS / MS powder coated
Sump Tank Capacity 120 Ltrs MOC SS / MS powder coated
Pipe fittings MOC GI/PVC
Stop Watch Electronic
Control Panel On/Off Switch, Mains Indicator, etc.

The whole setup is well designed and arranged in a good quality painted structure.
