HM 08 HYDRAULIC RAM

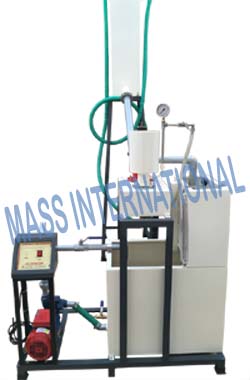

DESCRIPTIONThe setup is designed to study the Hydraulic Ram. Hydraulic Ram is used for pump little quantity of water to high head from a large quantity of water available at low head. It works on a principle of water hammer stating that “when flowing water is suddenly stopped in a long pipe a pressure wave travels along the pipe creating an effect of water hammer”. Set up consists of a pipe section fitted with a pulse valve and non-return valve, a supply reservoir on a stand which is connected to an overhead tank, an air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic. The flow rate of useful and waste water is measured using measuring tank and stop watch provided. Pressure gauge is connected for the purpose of measurement.
- To find out discharge of useful & waste water.
- To find out the efficiency of the Hydraulic ram.
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks and wetted parts
- Superb Painted structure
- Simple to operate & maintain
- Electric supply 230 +/- 10VAC,50Hz,1 phase
- Water supply Tap water connection ½” BSP
- Distilled water @ 80 liters (optional)
- Floor Area 1.5 x 1.5
TECHNICAL SPECIFICATIONS
| Product & Code | Hydraulic RAM & HM 08 |
|---|---|
| RAM | Size 50 x 15mm, Supply Head 1 m approx, Delivery Head 10 m (Max.) |
| Air Vessel | Suitable capacity MOC SS |
| Delivery line | For RAM, Dia 50 mm length 1 m. |
| Pump | Capacity FHP, Crompton/Sharp / Hero make |
| Supply Tank | Capacity 70 Ltrs. |
| Overhead Tank | Capacity 40 Ltrs. |
| Measuring Tank | For useful water 1000ml (Measuring Cylinder) For Waste water 20ltr SS tank fitted with Piezometer tube & scale |
| Piping | GI / PVC |
| Stop Watch | Electronic |
| Control Panel | With required electrical instrumentation |
The whole setup is well designed and arranged in a good quality painted structure.
