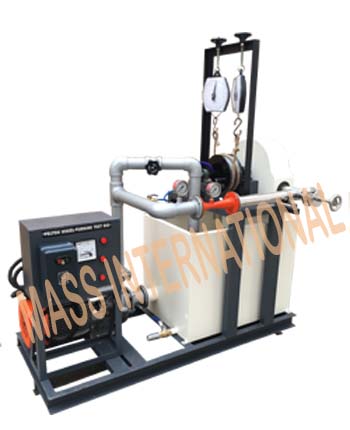

The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Row of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel the runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.
Product & Code | Pelton Wheel Turbine Test Rig & HM 09 (1 HP) |
---|---|
Output Power | 1.25 HP |
Discharge | 350 LPM (Approx.) |
Supply Head | 25 m |
Rope Brake Dynamometer | Dia 200 mm. |
Sump Tank | Capacity 190 Ltrs |
Water Circulation Centrifugal Pump | Capacity 5HP, Three Phase. |
Speed | 2100 RPM (Approx.) |
Impeller | Material Brass, Bucket type |
Nozzle | Material Stainless Steel/ brass |
Spear | Material Stainless Steel |
Discharge Measurement | Venturimeter with pressure gauge. |
Control Panel | Starter, Mains Indicator |
Overall Dimensions (Weight & Vol.) | 300 Kg, (LxBxH) (155 x 90 x 125CM) |
The whole setup is well designed and arranged in a good quality painted structure.
