FM-HB HYDRAULIC BENCH

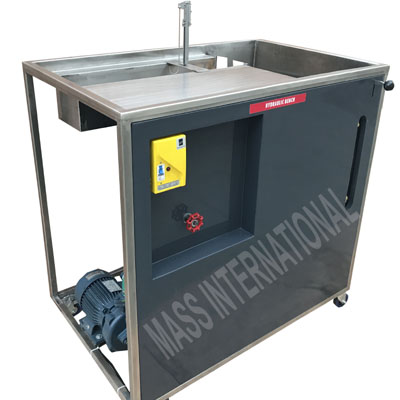

The present set-up is a self-contained, water re-circulating unit provided with a top tray and a sump tank. Various hydraulics experiments can be conducted on this set-up. A Centrifugal Pump is fitted for water circulation. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch. Water collected on the top tray from experimental set-up, drains and return to sump tank.

Following experiments can be carried out with common basic table, with separate experimental set-ups (supplied at extra cost), which can be connected to hydraulic bench with flexible pipe:

• Bernoulli's Theorem Apparatus
• Orifice and Mouth Piece
• Flow measurement by Venturimeter
• Flow measurement by Orifice meter
• Losses due to Friction in Pipe Lines
• Losses in Pipe fittings and pipe bends
• Tilting Flume
• Reynolds’s Number study
• Flow over notches
• Impact of Jet on Vanes
• Study of Pressure Measurement
• Pitot Static Tube
• Forced Vortex Apparatus
• Free Vortex Apparatus

• Closed loop water circulation
• Compact & stand alone set up
• Stainless Steel tanks
• Superb Painted structure
• Simple to operate & maintain

• Water Supply & Drain
• Electricity 1 kW, 220V AC, Single Phase
• Floor Area 1.5 x 1.5 m
