FM-HBA-13 CAVITATION DEMONSTRATION

DESCRIPTION

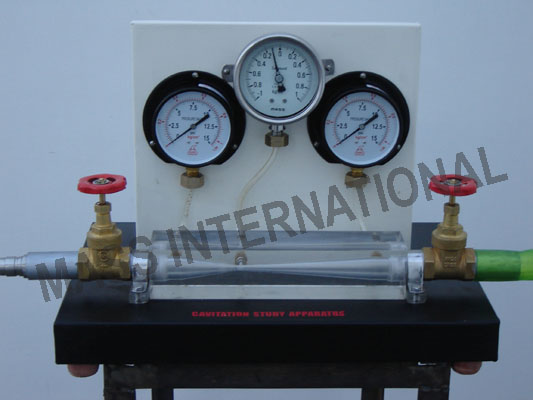

The apparatus consists of Venturi-shaped test section manufactured from clear acrylic to allow full visualization of flow conditions inside the section.The test section incorporates tappings that allow the static pressure upstream of the contraction, inside the throat and downstream of the expansion to be measured. Each tapping is connected to a Bourdon gauge of appropriate range.A flow control valve upstream of the test section allows the flow through the test section to be regulated without raising the static pressure in the test section, allowing Cavitation to be clearly demonstrated. Conversely a flow control valve downstream of the test section allows the static pressure in the test section to be elevated – a technique used to prevent cavitation from occurring.The closure of the downstream valve is restricted to prevent damage to the instrumentation. The test section and Bourdon gauges are mounted on a plate with feet.


DEMONSTRATION CAPABILITIES

  • Observation of the phenomenon of Cavitation in a liquid
  • Comparison of theoretical and actual pressure at Cavitation conditions
  • Demonstration of reducing Cavitation by increasing the static pressure in a liquid


UTILITIES REQUIRED

  • Hydraulics Bench
  • Supply of cold water. 0.4L/s at 2 Bar gauge


UTILITIES REQUIRED

  • Hydraulic Bench.
  • Water Supply & Drain
  • Electricity 1 kW, 220V AC, Single Phase
  • Floor Area 1.5 x 1.5


TECHNICAL SPECIFICATIONS

Product Cavitation Apparatus
Product Code FM-HBA-13
Upstream pressure gauge 63mm diameter, Range 0 to 1 Bar
Throat vacuum gauge 100mm diameter, Range -1 to 0 Bar
Stopwatch Electronic
Gross Weight and Volume Gross Weight: 26 Kg, Volume: 0-2 m3

The whole setup is well designed and arranged in a good quality painted structure.
