FM-HBA-26 ARCHIMEDES APPARATUS

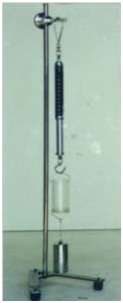

DESCRIPTIONIt demonstrates that the buoyancy acting on a body submerged in a liquid corresponds to the weight of the displaced liquid. The equipment consists of a solid stainless steel cylinder fits exactly into a hollow acrylic cylinder. Both cylinders have hooks for attachment to a spring balance hung on a stand. A beaker holding a liquid provides the buoyancy.
TECHNICAL DETAILS
Cylinder dimension: 40mm Diameter x 80 mm Long Spring balance: 1 kg Beaker: 1000 m Dimensions / Weight: 200 x 300 x 770 mm / ca. 3 kg
The whole setup is well designed and arranged in a good quality painted structure.
